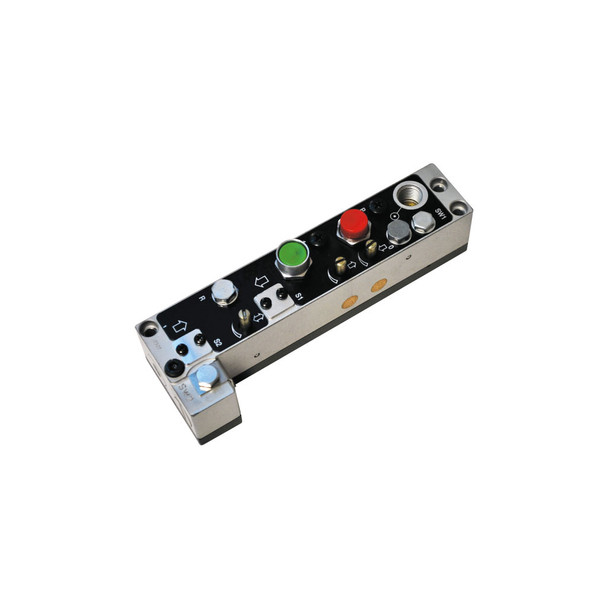

Description
| Part number | 436313 | |
| Model | A1 | |
Features
- Air Return Port Connects to breather port in the nose of the tool to provide extra retract capability with heavy front end attachments (10-32)
- Start Button For manual operation and set-up
- Remote Start Signal Port Pulse (10-32)
- Manual Stop Button Interrupts cycle and returns AFD to datum
- Remote Stop Signal Port Requires external signal pulse for returning the unit to datum rest position (10-32)
- Air inlet (1/4" BSP or 1/4" NPT)
- Work Cycle Complete Port Used for sequence control with other AFD's clamps, index tables, etc (positive at datum position) (10-32)
- Depth Stop Signal Port Used with external circuits such as dwell or pecking (10-32)
- Retract rate adjustment control
- Advance rate adjustment control
- Feed rate adjustment control
- Feed port (1/8" NPT)
- Return port (1/8" NPT)
- Start solenoid
- Stop solenoid
- Datum return (M8 x 1.00)
- Depth position (M8 x 1.00)
