Description
| Model | 8248-B30-1 |
| Sound Level dB(A) | 77 |
| Air Consp. @ Working Speed ft^3/cycle (L/cycle) | 1.5 (42) |
| Nominal Drilling Capacities Wood, Med. or FRP | 1/8 (3.2) |
| Stroke Lengths | 1-1/4" (32 mm) |
| Thrust @ 90 PSI lb. (N) | 90 lbs. |
| Free Speed rpm | 2,700 |
| Nominal Drilling Capacities Stnls. Steel Type 304 | 1/16 (1.6) |
| Std. Chuck Capacity in. (mm) | |
| Nominal Drilling Capacities Steel SAE 1213 | 3/32 (2.4) |
| Nominal Drilling Capacities Aluminum 2024-T4 | 1/8 (3.2) |
| Gear Reduction | Single |

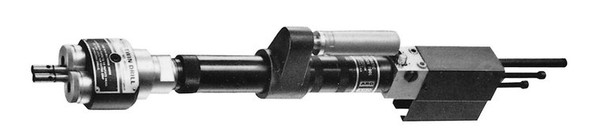

1/8" ( 3.2 mm ) Capacity , Steel - 0.25 H.P. ( .19 kW ) 3/8" to 2 1/8" spindle adjustment ( 9.5 mm to 54 mm )
- Adjustable spindles allow reapplication as machining requirements change.
- Comprehensive range of American and metric collets available to meet a wide variety of hole specifications.
- Double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle valve controls allow adjustment of forward and retract strokes.
- Adjustment screw provides infinite stroke length settings up to 3.0" maximum.
- Muffled exhaust for a quieter work environment.
For more information on the Ingersoll Rand 8248-B30-1 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
CCN Number 4159638
