Description
Model | 117 |
Shank Opening | Round |
Blows per Minute | 2,000 |
Bore Diameter in. (mm) | .69" (17) |
Stroke Length in. (mm) | 3.5" (89) |
Tool Weight lbs (kg) | 4.1 (1.86) |
Overall Length in. (mm) | 9.9" (251) |
Average Air Consumption cfm (L/min) | 3 (85) |
Air Consumption @ Load cfm (L/min) | 14 (396) |
Vibration m/s2 | 9.2, uncertainty: 3.0 |
Sound Pressure/Power dBA | 103.5 / 116.5 |
Air Inlet NPTF in. | 1/4" |
Min. Hose Size in. (mm) | 3/8" (10) |
Chisel Shank Diameter in. (mm) | 0.401" (10.2) |

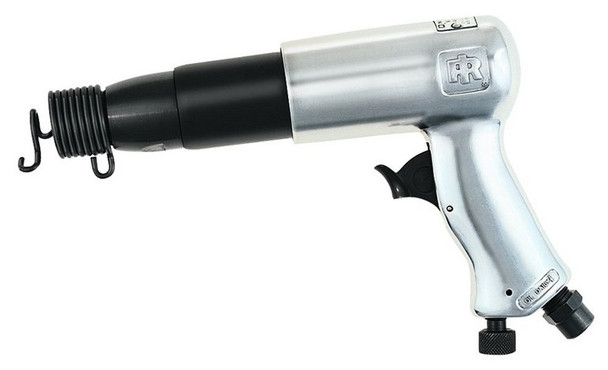

Standard Duty Air Hammer An economical air hammer with a longer piston stroke, this tool is designed for exhaust work, bolt cutting, and front end work. The trigger control and a built-in power regulator give you full control of the speed and power. 117K Air Hammer Kit Combine the 117 Air Hammer into the convenience of a kit. Kit includes 117 Air Hammer and five (5) assorted chisels. Assorted chisels include (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, (1) cutting chisel.
- Up to 2,000 blows per minute
- Alloyed stell barrel and heat-treated piston for longer life
- Built-in power regulator and trigger control
For more information on the Ingersoll Rand 117 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1216191
