Description
-

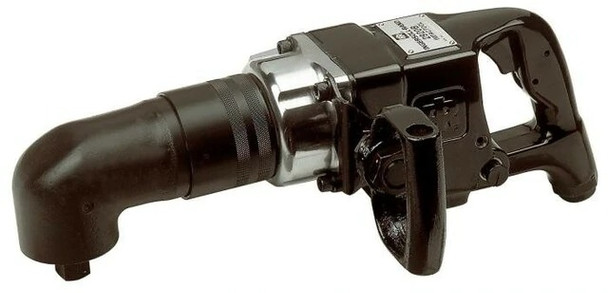

2934B9 1" RIGHT ANGLE D-HANDLE INSIDE TRIGGER IMPACT WRENCH
- 1/2" NPT inlet
- Through-hole socket retainer
- Built-in power regulator
- Pressure-feed mechanism lubrication
- Durable epoxy-coated handle/housing
- Integral muffler
- Twin Hammer mechanism
- Bronze endplates for durability and corrosion resistance
| Model | 2934B9 |
| Description | 1" square at 90° |
| Handle | Grip I.T. |
| Free Speed rpm | 5,300 |
| Impacts per minute | 780 |
| Max Torque ft-lb (Nm) | 750 (1017) |
| Recomm. Torque Range ft-lb (Nm) | 250-500 (339-678) |
| Weight Less Socket lb (kg) | 35.75 (16.2) |
| Length Less Socket in (mm) | 18.63 (473) |
| Side to Center Distance in (mm) | 1.63 (41) |
| Recommended Hose Size in (mm) | 3/4 (19) |
| CFM (L/min) | 47 (1331) |
Super Duty
CCN Number 1155183
