Description
- 1/2" NPT inlet
- Through-hole socket retainer
- Built-in power regulator
- Pressure-feed mechanism lubrication
- Durable epoxy-coated handle/housing
- Integral muffler
- Twin Hammer mechanism
- Bronze endplates

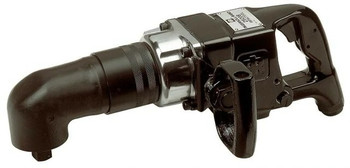

| Model | 2940B2 |
| Description | 1" square |
| Handle | Grip I.T. |
| Free Speed rpm | 5,000 |
| Impacts per minute | 850 |
| Max Torque ft-lb (Nm) | 2,000 (2710) |
| Recomm. Torque Range ft-lb (Nm) | 1,000-1,600 (1360-2669) |
| Weight Less Socket lb (kg) | 22 (9.98) |
| Length Less Socket in (mm) | 12.25 (311) |
| Side to Center Distance in (mm) | 2.19 (56) |
| Recommended Hose Size in (mm) | 3/4 (19) |
| CFM (L/min) | 58 (1642) |
Super Duty
CCN Number 1128404
Last updated on August 3rd 2021 - ATP115
