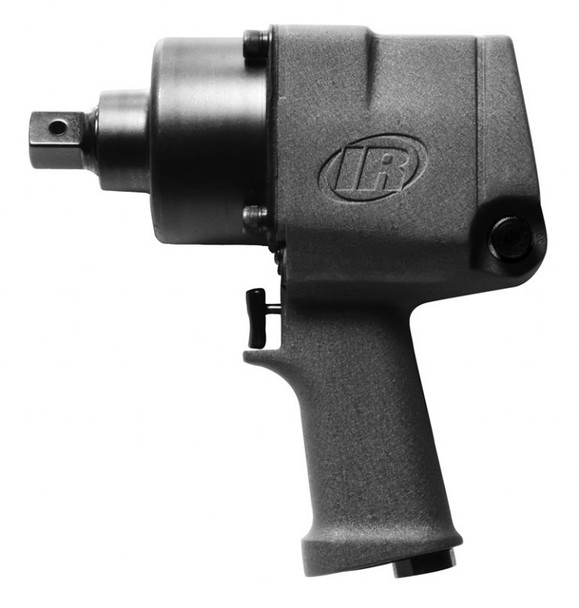

Description
| Model | 1720B1 |
| Description | 3/4" square |
| Handle | Grip |
| Free Speed rpm | 5,500 |
| Impacts per minute | 1,000 |
| Max Torque ft-lb (Nm) | 1,000 (1360) |
| Recomm. Torque Range ft-lb (Nm) | 200-600 (271-814) |
| Weight Less Socket lb (kg) | 13.19 (6.27) |
| Length Less Socket in (mm) | 11.75 (299) |
| Side to Center Distance in (mm) | 1.91 (48) |
| Recommended Hose Size in (mm) | 1/2 (13) |
| CFM (L/min) | 40 (1132) |
Heavy Duty
- 3/8" NPT inlet
- Through-hole socket retainer
- Built-in power regulator
- In-handle exhaust (pistol models)
- Jumbo Hammer mechanism
- Durable epoxy-coated handle
- Pressure-feed lubrication system
- Steel hammer case
For more information on the Ingersoll Rand 1720B1 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1209733
