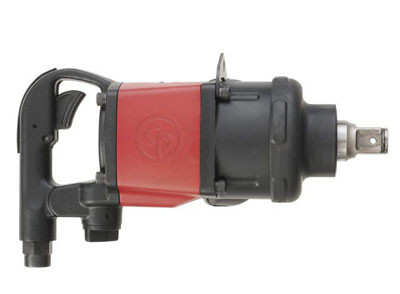

Chicago Pneumatic CP6920-D24 1" Impact Wrench | 1550 Ft Lbs

CP6920-D24 - Powerful, Durable & Comfortable

Benefits

Ideal for a variety of heavy Industrial Maintenance applications

Reliable & powerful oil bath Pinless Rocking Dog clutch

Operator comfort with many ergotnomic features

3-part construction for reducing downtime maintenance

Features

1" Industrial D-Handle impact wrench with Dual (hole & ring) type socket retainer

Reliable oil bath pinless rocking dog clutch

Durable Aluminum body & Rubber protective cover on clutch housing

Motor with reninforced steel plates for unmatched durability

Confortable D-type side handle with Rubber grip

Removable hole plate for suspension

Metal trigger & reverse knob for longer durability

4-positions regulator & easy reverse

Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number	6151590080
Model	CP6920-D24
Joint type: soft	Joint type: soft
Joint type: hard	Joint type: hard
Handle type	D-Handle Inside Trigger
Square drive	1"
Working Torque Range (fwd)	500-2,100 Nm	370-1,550
Working Torque Range (fwd)	370-1,550 ft.lbs	500-2,100
Maximum Torque (reverse)	2600 Nm	1920 ft.lbs
Maximum Torque (reverse)	1920 ft.lbs	2600 Nm
Free speed	5000 rpm
Blows per minute	650
Net weight	22.7 lb	10.3 kg
Net weight	10.3 kg	22.7 lb
Power/weight ratio	252.427184466019 Nm/kg	84.5814977973568 ft.lb/lb
Power/weight ratio	84.5814977973568 ft.lb/lb	252.427184466019 Nm/kg
Length	14.2"	360 mm
Length	360 mm	14.2"
Side to center	55 mm	2.2"
Side to center	2.2"	55 mm
Actual air consumption	40.2 cfm
Actual air consumption	19 l/s	40.2 cfm
Air inlet thread size	0.5 "
Min. hose size	13 mm	1/2"
Min. hose size	1/2"	13 mm
Noise level	100 dBa
Sound Power	111 dBa
Vibration (ISO-8662-7)	N/A m/s²
Vibration α (ISO-28927-2)	8.4 m/s²
Vibration K (ISO-28927-2)	2.8 m/s²
Socket retainer	Dual
Clutch type	Pinless Rocking Dog - Oil bath

Please Call Us For Your Best Price

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
