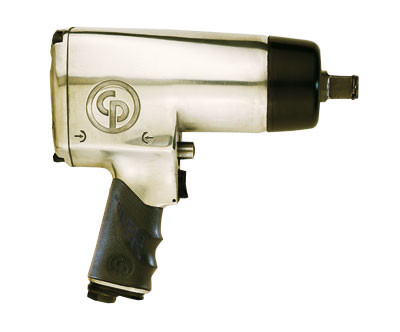

Chicago Pneumatic CP772H 3/4" Impact Wrench | 700 Ft Lbs

Chicago Pneumatic

SKU:
T024598
Please Call For Pricing and Availability

Description

CP772H - The unmatched "Reference" in 3/4" impact

Benefits

  • General Maintenance
  • Smooth operation thanks to the DYNA-PACT clutch
  • Comfortable use thanks to low noise and vibration levels
  • Good durability
  • Features

  • 3/4" impact wrench with ring retainer
  • DYNA-PACT oil bath clutch
  • One-handed reverse button with 4 settings of power
  • Comfortable handle grip
  • 360° air inlet swivel


  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part numberT024598
    ModelCP772H
    Handle typePistol
    Square drive3/4"
    Working Torque Range (fwd)203-949 Nm150-700
    Working Torque Range (fwd)150-700 ft.lbs203-949
    Maximum Torque (reverse)1356 Nm1000 ft.lbs
    Maximum Torque (reverse)1000 ft.lbs1356 Nm
    Free speed4200 rpm
    Blows per minute900
    Net weight10.5 lb4.76 kg
    Net weight4.76 kg10.5 lb
    Power/weight ratio284.873949579832 Nm/kg95.2380952380952 ft.lb/lb
    Power/weight ratio95.2380952380952 ft.lb/lb284.873949579832 Nm/kg
    Length9.63"245 mm
    Length245 mm9.63"
    Average air consumption6 cfm
    Average air consumption2.8 l/s6 cfm
    Actual air consumption24 cfm
    Actual air consumption11.3 l/s24 cfm
    Air inlet thread size0.375 "
    Min. hose size13 mm1/2"
    Min. hose size1/2"13 mm
    Noise level96 dBa
    Sound Power107 dBa
    Vibration (ISO-8662-7)4.9 m/s²
    Vibration α (ISO-28927-2)5.8 m/s²
    Vibration K (ISO-28927-2)2 m/s²
    Socket retainerFriction ring
    Clutch typePin clutch - Oil bath
