Description

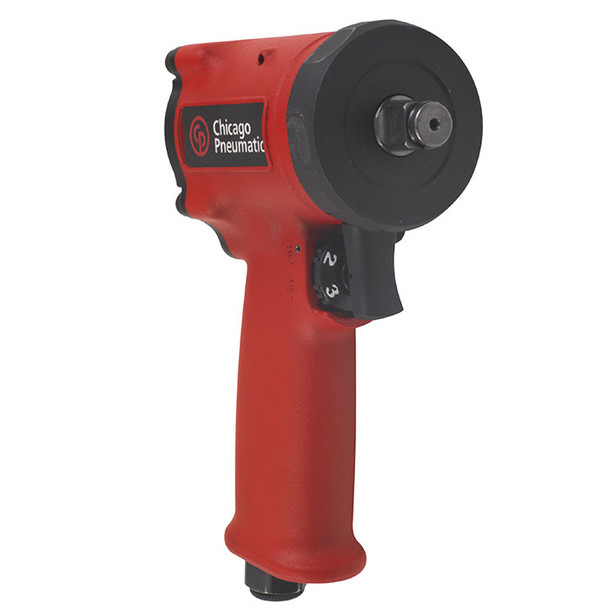

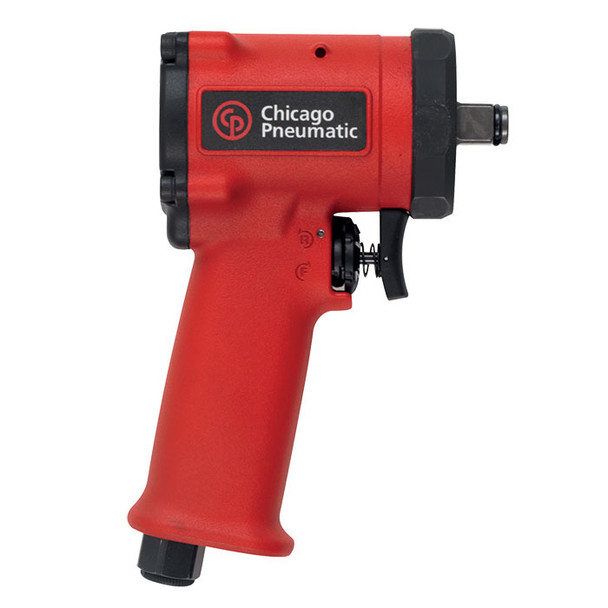

CP7732 - Ultra Compact & Powerful
Benefits
- Best power to weight ratio: 450 ft-lbs / 610 Nm
- Ultra compact
- Easy to use
- Durable
Features
- Steel front cover & Aluminum body
- One hand operation forward – reverse by either left or right handed users
- 3 setting positions
- Length: 4.4'' = 112 mm as can size
- Jumbo hammer
Available now at AirToolPro / Zampini Industrial 1-800-353-4676
| Part number | 8941077320 | |
| Model | CP7732 | |
| Handle type | Pistol | |
| Square drive | 1/2" | |
| Working Torque Range (fwd) | 102-310 ft.lbs | 138-420 |
| Maximum Torque (reverse) | 450 ft.lbs | 610 Nm |
| Free speed | 9000 rpm | |
| Blows per minute | 1400 | |
| Net weight | 2.9 lb | 1.3 kg |
| Power/weight ratio | 155.172413793103 ft.lb/lb | 469.230769230769 Nm/kg |
| Length | 4.4" | 112 mm |
| Side to center | 1" | 25 mm |
| Average air consumption | 5 cfm | |
| Actual air consumption | 19.6 cfm | |
| Air inlet thread size | 0.25 " | |
| Min. hose size | 3/8" | 10 mm |
| Noise level | 95 dBa | |
| Sound Power | 106 dBa | |
| Vibration α (ISO-28927-2) | 12.1 m/s² | |
| Vibration K (ISO-28927-2) | 4.4 m/s² | |
| Socket retainer | Friction ring | |
| Clutch type | Single dog clutch | |
Please Call Us For Your Best Price
Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.
Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
