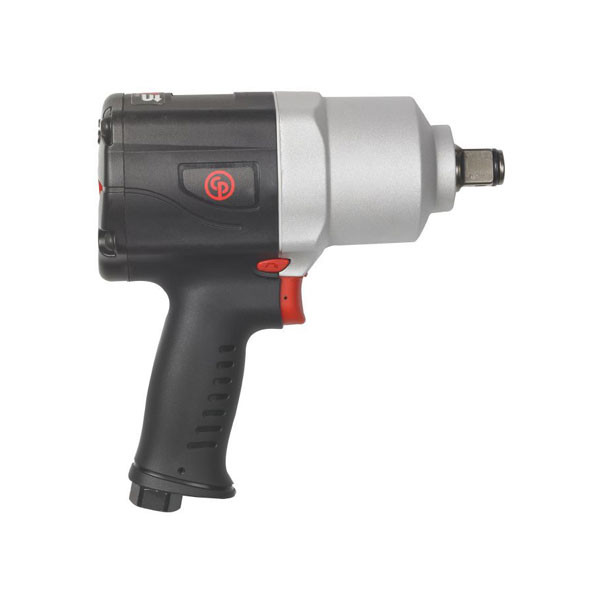

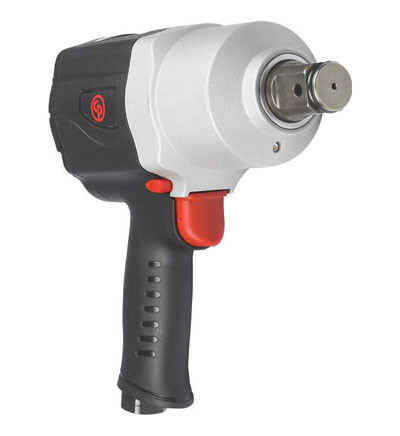

Chicago Pneumatic CP7769 3/4" Impact Wrench | 1080 Ft Lbs

Chicago Pneumatic

  • CP7769 Impact Wrench by CP Chicago Pneumatic - 8941077690
  • CP7769 Impact Wrench by CP Chicago Pneumatic - 8941077690 available now at
  • CP7769 Impact Wrench by CP Chicago Pneumatic - 8941077690 image at
  • Chicago Pneumatic CP7769 3/4" Impact Wrench | 1080 Ft Lbs
Please Call For Pricing and Availability
Please Call For Pricing and Availability


CP7769 - Powerful, Lightweight & Compact


  • Powerful impact for General Maintenance
  • Maximize operator comfort: lightweight and balanced design
  • Energy savings: low air consumption
  • Features

  • 3/4" composite impact wrench with dual retainer (hole + ring)
  • 1,440 ft.lbs (1,950Nm) of maximum torque in reverse
  • Low consumption air motor at 31 cfm (14.7 l/s)
  • Insulating and lightweight composite handle
  • S2S easy forward reverse
  • Full teasing developed trigger

  • Available now at AirToolPro / Zampini Industrial 1-800-353-4676

    Part number8941077690
    Over carton260*260*480 10.2*10.2*18.9
    Over carton10.2*10.2*18.9260*260*480
    Handle typePistol
    Square drive3/4"
    Working Torque Range (fwd)407-1,464 Nm300-1,080
    Working Torque Range (fwd)300-1,080 ft.lbs407-1,464
    Maximum Torque (reverse)1950 Nm1440 ft.lbs
    Maximum Torque (reverse)1440 ft.lbs1950 Nm
    Free speed7000 rpm
    Blows per minute1200
    Net weight7.4 lb3.4 kg
    Net weight3.4 kg7.4 lb
    Power/weight ratio573.529411764706 Nm/kg194.594594594595
    Power/weight ratio194.594594594595 Nm/kg
    Length8.4"214 mm
    Length214 mm8.4"
    Side to center39 mm1.53"
    Side to center1.53"39 mm
    Average air consumption7.75 cfm
    Average air consumption3.7 l/s7.75 cfm
    Actual air consumption31 cfm
    Actual air consumption14.7 l/s31 cfm
    Air inlet thread size0.375 "
    Min. hose size13 mm1/2"
    Min. hose size1/2"13 mm
    Noise level97 dBa
    Sound Power108 dBa
    Vibration α (ISO-28927-2)12.6 m/s²
    Vibration K (ISO-28927-2)3.4 m/s²
    Socket retainerDual
    Clutch typeTwin hammer
    Box dimensions253*253*117 10*10*4.6
    Box dimensions10*10*4.6253*253*117

    Please Call Us For Your Best Price

    Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

    Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
