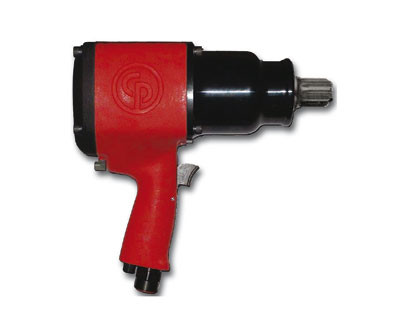

CP0611P RLS Impact Wrench by CP Chicago Pneumatic - T025414

CP0611P RLS - The Best Super Industrial with Spline #5

Benefits

Best impact to target big bolts on very demanding industries thanks to Spline #5

Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil

Operator comfort and control thanks to perfect ergotnomic design even at VERY high torque

Constant & progressive Torque due to the 2-Jaw clutch

Unmatched durability with reliable mechanism & durable housing

Excellent for Heavy Industrial Maintenance Production applications

Features

Super industrial impact with spline #5

Reliable 2-jaw clutch

Aluminum body & steel clutch housing

Protective & Durable reverse

Compact 3-part construction & easy maintenance

360° adjustable D-type side handle

Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number	T025414
Model	CP0611P RLS
Joint type: soft	Joint type: soft
Joint type: hard	Joint type: hard
Handle type	Pistol
Square drive	#5 spline"
Working Torque Range (fwd)	1,220-2,440 Nm	900-1,800
Working Torque Range (fwd)	900-1,800 ft.lbs	1,220-2,440
Maximum Torque (fwd)	3790 Nm	2800 ft.lbs
Maximum Torque (fwd)	2800 ft.lbs	3790 Nm
Maximum Torque (reverse)	3790 Nm	2800 ft.lbs
Maximum Torque (reverse)	2800 ft.lbs	3790 Nm
Free speed	3500 rpm
Blows per minute	1020
Net weight	23.1 lb	10.5 kg
Net weight	10.5 kg	23.1 lb
Power/weight ratio	360.952380952381 Nm/kg	121.212121212121 ft.lb/lb
Power/weight ratio	121.212121212121 ft.lb/lb	360.952380952381 Nm/kg
Length	10.7"	272 mm
Length	272 mm	10.7"
Side to center	46 mm	1.81"
Side to center	1.81"	46 mm
Actual air consumption	48 cfm
Actual air consumption	22.6 l/s	48 cfm
Air inlet thread size	0.5 "
Noise level	102 dBa
Sound Power	113 dBa
Vibration (ISO-8662-7)	12.4 m/s²
Vibration α (ISO-28927-2)	16.8 m/s²
Vibration K (ISO-28927-2)	4.7 m/s²
Socket retainer	#5 spline
Clutch type	2-Jaw
Bolt size	M36

Please Call Us For Your Best Price

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!



CP Chicago Pneumatic Industrial Tools
