Description
Benefits
Features
Available now at AirToolPro / Zampini Industrial 1-800-353-4676
| Part number | 6151590570 | |

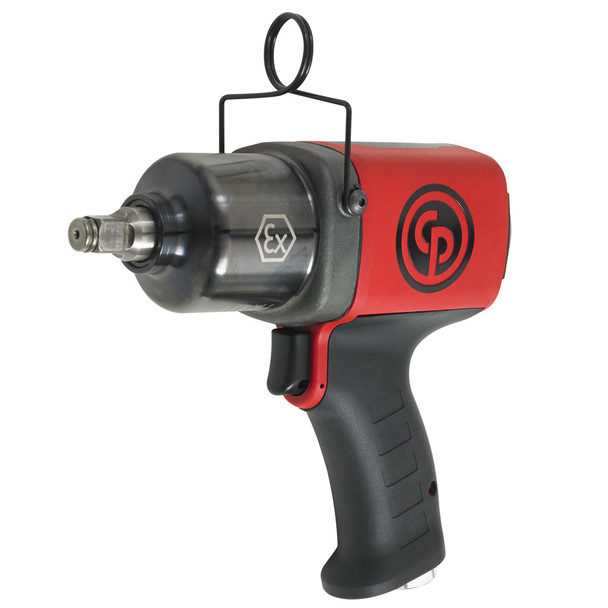

| Model | CP6748EX-P11R ATEX | |
| Over carton | n/a | n/a |
| Handle type | Pistol | |
| Square drive | 1/2" | |
| Working Torque Range (fwd) | 130-560 ft.lbs | 180-760 |
| Maximum Torque (reverse) | 800 ft.lbs | 1085 Nm |
| Free speed | 8400 rpm | |
| Blows per minute | 1200 | |
| Net weight | 5.4 lb | 2.4 kg |
| Power/weight ratio | 148.148148148148 ft.lb/lb | 452.083333333333 Nm/kg |
| Length | 7.9" | 200 mm |
| Side to center | 1.4" | 36 mm |
| Actual air consumption | 30 cfm | |
| Air inlet thread size | 0.25 " | |
| Min. hose size | 3/8" | 10 mm |
| Noise level | 93 dBa | |
| Sound Power | 104 dBa | |
| Vibration α (ISO-28927-2) | 8.7 m/s² | |
| Vibration K (ISO-28927-2) | 2.2 m/s² | |
| Socket retainer | Friction ring | |
| Clutch type | Twin hammer / Oil Bath | |
| Bolt size | 3/4" | M20 |
| Box dimensions | 2,9 x 8,7 x 9,1 | 75 x 220 x 230 |
Please Call Us For Your Best Price
Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.
Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
