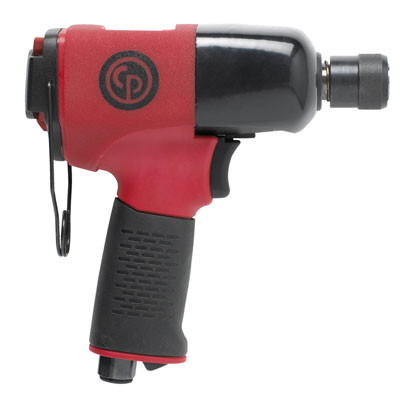

CP8232-QC Impact Wrench by CP Chicago Pneumatic - 6151590190

CP8232-QC - Very Versatile, Robust & Comfortable

Benefits

Very low noise, very limited vibration and lightweight for operator comfort

Powerful but easy to control for assembly/dissassembly operations

Compact for easy access on tight spots

Durable and reliable impact for Industrial Maintenance and Production applications

Features

7/16" Hexagonal Quick Change impact wrench

Powerful & durable twin hammer clutch

Composite body and aluminum clutch housing

3 power settings in forward & full power in reverse

Protective cover & suspension bail

Progressive trigger & Rubber grip

Available now at AirToolPro / Zampini Industrial 1-800-353-4676

Part number	6151590190
Model	CP8232-QC
Over carton	360 x 245 x 410	14,2 x 9,6 x 16,2
Over carton	14,2 x 9,6 x 16,2	360 x 245 x 410
Handle type	Pistol
Square drive	7/16" Hex."
Working Torque Range (fwd)	80-400 Nm	60-295
Working Torque Range (fwd)	60-295 ft.lbs	80-400
Maximum Torque (reverse)	450 Nm	332 ft.lbs
Maximum Torque (reverse)	332 ft.lbs	450 Nm
Free speed	11500 rpm
Blows per minute	1250
Net weight	3.1 lb	1.4 kg
Net weight	1.4 kg	3.1 lb
Power/weight ratio	321.428571428571 Nm/kg	107.096774193548 ft.lb/lb
Power/weight ratio	107.096774193548 ft.lb/lb	321.428571428571 Nm/kg
Length	7"	177 mm
Length	177 mm	7"
Side to center	30 mm	1.18"
Side to center	1.18"	30 mm
Actual air consumption	21.2 cfm
Actual air consumption	10 l/s	21.2 cfm
Air inlet thread size	0.25 "
Min. hose size	10 mm	3/8"
Min. hose size	3/8"	10 mm
Noise level	89 dBa
Sound Power	100 dBa
Vibration (ISO-8662-7)	3.9 m/s²
Vibration α (ISO-28927-2)	6.6 m/s²
Vibration K (ISO-28927-2)	3.2 m/s²
Socket retainer	Quick change
Clutch type	Twin hammer
Box dimensions	70 x 235 x 200	2,8 x 9,3 x 7,9
Box dimensions	2,8 x 9,3 x 7,9	70 x 235 x 200

Please Call Us For Your Best Price

Established in 1901, Chicago Pneumatic Tools offers hundreds of quality air tools designed for a wide range of maintenance and production applications: impact wrenches, ratchet wrenches, screwdrivers, drills, grinders, sanders and polishers, cutting tools, and a whole lot more. Based on decades of expertise in providing the right tools, compressors or construction equipment for the toughest demands, CP understand the needs of the professionals for maintaining and repairing heavy equipment and machinery on-site or off-site.

Zampini Industrial Group is proud to be a premier online supplier of Chicago Pneumatic Tools, and our numerous years representing the CP brand has provided us with a wide range of valuable application experiences that we use to help you get the perfect CP tool for your job!
