Description
- Powerful with smooth, balanced blows
- Pressure-fed lubrication system automatically greases the impact mechanism
- Non-biased 500 ft-lb in forward and reverse
Model | 244A |
Nut Busting Torque ft-lb (Nm) | |
Max. Torque in Reverse ft-lb (Nm) | 500 (678) |
Working Torque Range ft-lb (Nm) | 40-350 (54-470) |
Forward Torque Range ft-lb (Nm) | |
Weight lb (kg) | 6 (2.72) |
Free Speed rpm | 7,000 |
Impacts per minute | |
Length in (mm) | 7.3 (185) |
Average Air Consumption cfm (L/min) | 5.4 (153) |
Air Consumption @ Load cfm (L/min) | 21 (595) |
Sound Pressure/Power dBA | 93/104 |
Air Inlet NPTF in (mm) | 1/4 (6) |
Min. Hose Size in (mm) | 3/8 (10) |

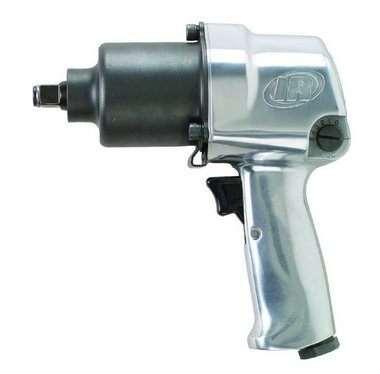

Bring out the "big gun" for tire-changing, and other heavy automotive and truck work. The impact mechanism pumps out 500 ft.-lbs. torque at a free speed of 7,000 rpm to get the job done fast.
CCN Number 1388412
