Description
- Solid steel motor and arbor housing provide maximum durability
- Built-in mist lubricator automatically oils motor when throttle is activated
- Heavy-duty, double-row ball bearings assure long life and smooth operation
- 61 = Series (61, 77, 88, 99)
H = Type (A- angle, H- horizontal, V- vertical)
L = Throttle (L- lever, G-grip)
60 = Free Speed (45- 4500, 60- 6000, 77- 7700, 90- 9000, 120- 12000, 150- 15000)
G = Type of Wheel (G- collet, H- Type 1 wheel, L- cone wheel, P- Type 27 wheel, S- Type 11 Wheel)
6 = Diameter and Thread of Arbor (6- 3/8 24 th., 8- 1/2" 13 th., 10- 5/8 11 th.)
4 = Diameter of Wheel or Collet (4- 1/4" collet, 3- 3 wheel, 4- 4wheel, 6- 6 wheel, 7- 7 wheel, 8- 8 wheel, 9- 9 wheel) - Integral steel guard provides extra strength for added operator protection
- Powerful 1 ½ hp motor produces high efficient performance

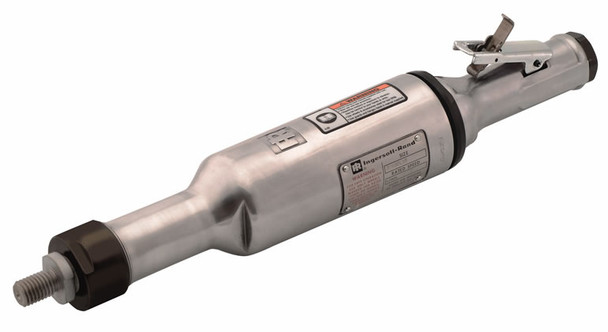

| Model | 77H90L10 |
| Rated Power hp (kW) | 1.5 (1.1) |
| Max Free Speed (rpm) | 9,000 |
| Exhaust | Side |
| Output | 5/8" - 11 Thread |
| Wheel Size in. (mm) | N/A |
| Weight lbs. (kg) | 6.0 (2.7) |
| Length in. (mm) | 16.44" (417) |
| Vibration m/s2 | < 2.5 |
| Sound Pressure/Power dBA | 80.9 / N/A |
| Average Air Consumption cfm (L/min) | |
| Air Consumption @ Load cfm (L/min) | 37 (1048) |
| Air Inlet Size NPT in. | 3/8" |
| Min Hose Size in. (mm) | 1/2" (13) |
Pro Series grinders incorporate a patented motor controller which is designed to increase productivity while enhancing operator safety. Adjustable side handles, an ergonomic main handle, and self locking throttle all help to reduce operator fatigue.
Available Now at Zampini Industrial.
Please call us for your best pricing and current delivery time.
CCN Number 1192970
