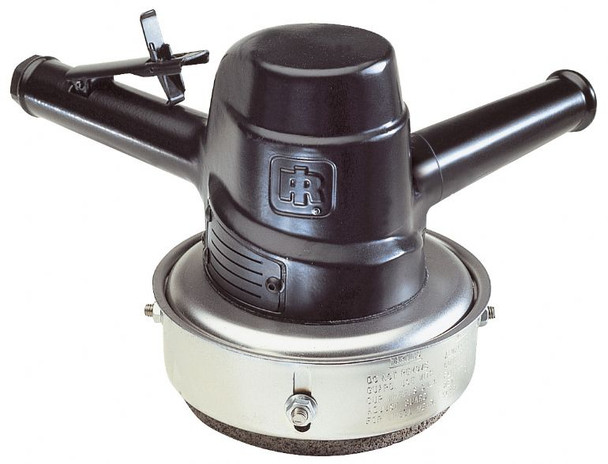

Ingersoll Rand 99V60S106 Vertical Grinder | 3 HP | 6,000 RPM | 5/8" - 11 Thread, 6" Guard | Side Exhaust

Model	99V60S106
Rated Power hp (kW)	3.0 (2.24)
Max Free Speed (rpm)	6,000
Exhaust	Side
Output	5/8" - 11 Thread, 6" Guard
Wheel Size in. (mm)	6" (150)
Weight lbs. (kg)	10.75 (4.8)
Length in. (mm)	N/a
Vibration m/s2	< 2.5
Sound Pressure/Power dBA	85.4 / 98.5
Average Air Consumption cfm (L/min)
Air Consumption @ Load cfm (L/min)	84 (2379)
Air Inlet Size NPT in.	1/2"
Min Hose Size in. (mm)	3/4" (19)

Pro Series grinders incorporate a patented motor controller which is designed to increase productivity while enhancing operator safety. Adjustable side handles, an ergonomic main handle, and self locking throttle all help to reduce operator fatigue.

• Solid steel motor and arbor housing provide maximum durability
• Built-in mist lubricator automatically oils motor when throttle is activated
• Heavy-duty, double-row ball bearings assure long life and smooth operation
• 61 = Series (61, 77, 88, 99)



  H = Type (A- angle, H- horizontal, V- vertical)



  L = Throttle (L- lever, G-grip)



  60 = Free Speed (45- 4500, 60- 6000, 77- 7700, 90- 9000, 120- 12000, 150- 15000)



  G = Type of Wheel (G- collet, H- Type 1 wheel, L- cone wheel, P- Type 27 wheel, S- Type 11 Wheel)



  6 = Diameter and Thread of Arbor (6- 3/8" 24 th., 8- 1/2" 13 th., 10- 5/8" 11 th.)



  4 = Diameter of Wheel or Collet (4- 1/4" collet, 3- 3" wheel, 4- 4"wheel, 6- 6" wheel, 7- 7" wheel, 8- 8" wheel, 9- 9" wheel)


• Stainless steel motor controller with industry€™s only lifetime warranty
• Powerful 2.5 hp and 3.0 hp motor produces high efficient performance
• Integral steel guard provides extra strength for added operator protection

For more information on the Ingersoll Rand 99V60S106 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 1177492
