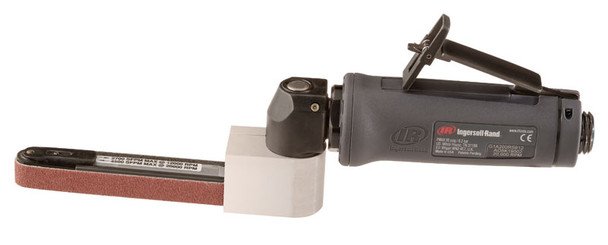

Description
| Model | G1A120RS818 |
| Rated Power hp (kW) | 0.4 (0.3) |
| Max Free Speed (rpm) | 12,000 |
| Exhaust | Rear |
| Output | 1/2" x 18" Belt (13mm x 457mm) |
| Wheel Size in. (mm) | N/A |
| Weight lbs. (kg) | 1.5 (0.7) |
| Length in. (mm) | 14" (355) |
| Vibration m/s2 | < 2.5 |
| Sound Pressure/Power dBA | 82.4 / 93.4 |
| Average Air Consumption cfm (L/min) | |
| Air Consumption @ Load cfm (L/min) | 16 (538) |
| Air Inlet Size NPT in. | 1/4" |
| Min Hose Size in. (mm) | 3/8" (10) |
At 0.40 hp (0.3kW), the G1-Series packs a lot of power in a small package. Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks. The G1-Series also features low noise and vibration levels and one-nut access for all motor servicing.
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horrizontal No Nxtension, X- Extended Hor. Grinder, XX- Double Bearing Ext. Horr., S- 2" Extension )
180 = Free Speed (18,000 rpm)
R = Exhaust Direction (R- rear, F- front, P- piped away)
P = Output Type (P- Type 27, Type 1, Collet Tools, Sander Arbor)
10 = Output Size -Type 27 Tools (5- 3/8" arbor Metric[for 80mmx10mm], 6- 3/8" arbor English, 7- 3/8" arbor Metric[for 100mm, 125mm, or 150mm x 22.2mm], or 10- 5/8")
45 = Guard Sizes (3- 3" guard, 4- 4" guard, 45- 4.5" guard, 5- 5" guard, 6- 6" guard) - Improved efficiency means big power in a small package
- Laser-etched product information wont wear off
For more information on the Ingersoll Rand G1A120RS818 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 80155518
