Description
- Ergonomic D-shaped handle for operator comfort
- Laser-etched product information won’’t wear off
- G2 = Power hp (G1- 0.4 , G2- 0.8 , G3- 1.35)
A = Model Config. (A- Angle Grinder, E- Ext. Angle Grinder Small, L- Ext. Angle Grinder Large, H- Horizontal Grinder, X- Ext. Horizontal Grinder, XX- Double Bearing Ext. Horizontal Grinder, S- 2” Extension Horizontal Grinder)
120 = Free Speed (12,000 rpm)
R = Exhaust Direction (R - rear, F - front, P - piped away)
P = Output Type (P - Type 27, H - Type 1, G - Collet Tools, S - Sander Arbor)
10 = Output Size -Type 27 Tools (6 - 3/8”-24 thread arbor English, 7 - 3/8”-24 thread arbor Metric [for 100mm, 125mm, or 150mm x 22.2mm], or 10 - 5/8”-11 thread arbor English,) Type 1 Tools (6 - 3/8"-24 thread arbor English) Collet Tools (4 - 1/4" collet) Sanders (4 - 1/4"-20 thread, 418 - 1/4" x 18" , 812 - 1/2" x 12", 818 - 1/2" x 18")
45 = Guard Sizes (3- 3” guard, 4- 4” guard, 45- 4.5” guard, 5- 5” guard, 6- 6” guard) - Big Power in a small package
- Ergonomic low-profile locking throttle lever for operator safety
- Contamination-free controller helps maintain tools speed to maximize material removal
- Composite housing prevent cold feel for operator comfort
- Easy to service one nut removal for motor repair
- Wheel guard, flanges and nut Spindle and wheel nut wrenches

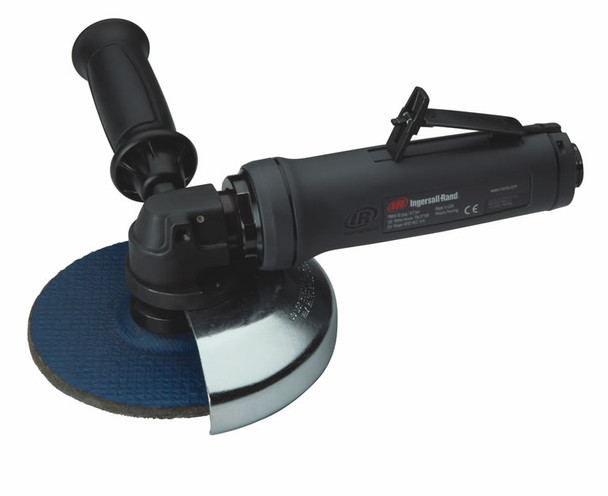

| Model | G3A120RP105 |
| Rated Power hp (kW) | 1.35 (1.0) |
| Max Free Speed (rpm) | 12,000 |
| Exhaust | Rear |
| Output | 5/8" - 11 Thread, 5" Guard |
| Wheel Size in. (mm) | 5" (125) |
| Weight lbs. (kg) | 4.7 (2.1) |
| Length in. (mm) | 9.63" (244) |
| Vibration m/s2 | 6.5, uncertainty: 2.0 |
| Sound Pressure/Power dBA | 87.9 / 98.9 |
| Average Air Consumption cfm (L/min) | |
| Air Consumption @ Load cfm (L/min) | 55 (1558) |
| Air Inlet Size NPT in. | 3/8" |
| Min Hose Size in. (mm) | 1/2" (13) |
With its superior power-to-weight ratio, delivering a mighty 1.35 hp (1.0 kW), the G3-Series is made to tackle the biggest jobs demanding the most power. Featuring an internal contamination-free air controller that helps maximize material removal rates, it is ideal for industrial-duty material removal with grinding wheels and coated abrasives.
Available Now at Zampini Industrial.
Please call us for your best pricing and current delivery time.
CCN Number 80152671
