Description
| Model | VT22-120P105 |
| Rated Power hp (kW) | 3.0 (2.2) |
| Free Speed rpm | 12000 |
| Wheel Size in. (mm) | 5 (125) |
| Max. Wheel Thickness in (mm) | 1/4 (6) |
| Maximum Depth of Cut in (mm) | 1.6 (40) |
| Wheel Type | Type 27 or Type 1 |
| Arbor/Spindle Thread | 5/8 in 11 in (M14) |
| Air Consumption @ Free Speed cfm (L/min) | 27 (12.7) |
| Air Consumption @ Load cfm (L/min) | 84 (39.6) |
| Air Inlet NPT (BSP) | 1/2" |
| Min. Hose Size in. (mm) | 1/2 (13) |
| Sound Pressure/Power dBA | 86.4 (97.4) |
| Vibration Level [m/s2] | 5.7 |
| Tool Weight lbs (kg) | 4.6 (2.1) |
| Tool Length in (mm) | 11.6 (295) |
| Height Over Spindle in (mm) | 3.5 (89) |

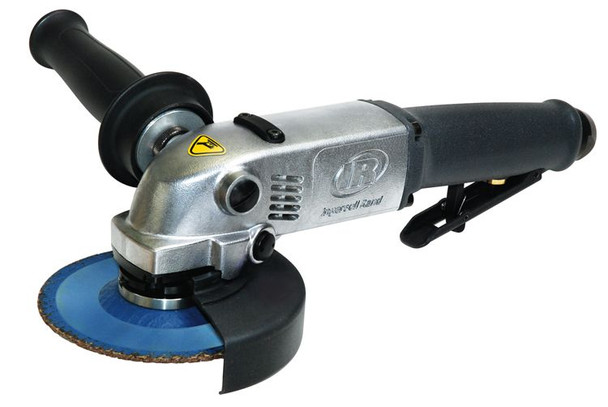

Introducing the new Ingersoll Rand 3.0 HP (2.2 kW) twin-stage 5" (125 mm) turbine angle grinder. More material removal, greater cutting depth with less efffort. The12,000 RPM Vortex grinding tool features a single, push button that makes wheel changes & guard adjustments easy. Replace the side handle with an optional top handle for easy access to tight spaces.
- 0.9 in (22.5mm)Spindle Offset Cuts deeper! Cutting depth up to 1.6 in (40mm)
- Optional Top Handle - Provides access to hard to reach places.
- Reduced Vibration Adjustable Side Handle - Increase operator comfort and efficiency.
- One Button Spindle and Guard Lock - Quick abrasive changes and guard adjustment.
- Large Guard Adjustment - Allows for better visibility and better safety.
- Directional Exhaust - Increases comfort by allowing left or right side exhaust.
- Trigger Safety Lock - Helps guard against accidental operation.
For more information on the Ingersoll Rand VT22-120P105 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 17027939
Last updated on August 3rd 2021 - ATP115
