PA506 Torque Reaction / Tapping Arm by Ergonomic Tool Arms

PA506 Standard Duty Arm for In-Line, Air Screwdrivers

Vertical Torque Range: 0-550 in-lbs ( 62 Nm)
Horizontal Torque Range: 0 – 275 in-lbs (31 Nm)
Tool Weight: 0-6 lbs. ( 2.7 kg)
Max Reach: 34 3/4 inches (883 mm)
Min Reach: 11 1/2 inches (292 mm)
Supply Hose: Braided Polyurethane 5/16” ID
Tool Connection: 1/4” NPT

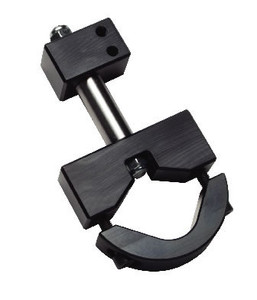

(Additional tool holder options available.)
Shipping Weight: 23 lbs
Air Requirements: filtered, dry air 80 psi, 125 psi max.
(OK to add lubricator ahead of PA506 if your air tool requires lubrication.)



Product Manual for PA506

Owners Manual for PA506

Unique Mounting Ideas for PA506



Ergonomics

1. Eliminates Torque Reaction for air & electric powered screwdrivers, nut runners, tappers and hand drills.


2. Tool and Arm Float Practically Weightless, reducing burden on operator.


3. DF Models Automatically Provide Air Tools with Down Force during Tool Rotation and weightless float when motor is idle. This “power assist” aids operator when driving self-threading fasteners or drilling holes.




Production Benefits

1. Keeps Driver in Alignment with Fastener and Workpiece. Helps eliminate cross threading, broken bits, screw head burrs and out of square fasteners.


2. Keeps Expensive Tools from being Dropped, Moved or Misplaced.


3. Tool Stays Right Over Work Area, Reducing Cycle Time.


4. Tapping Arms Thread Holes at a Much Lower Cost than a Machine Tool and at a Faster Rate. ETA Tap Arms are also great for a second operation in a casting, molded plastic part or in punched sheet metal.... wherever threads are required.
