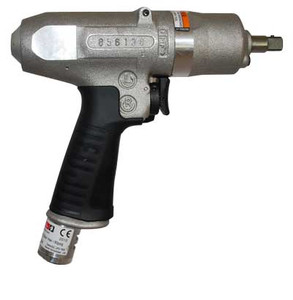

Desoutter PT160-T3500-I13S Pulse Tool

Desoutter

SKU:
2051474714
Availability:
Please Call For Pricing and Availability
Please Call For Pricing and Availability

Description

Part number2051474714
ModelPT160-T3500-I13S
Output driveSq. 1/2" M"
Free speed3500 rpm
Torque range110-160 Nm81-118
Torque range81-118 ft.lbs110-160
OperationPush start
Type of toolPistol
Clutch typeNon shut off
Net weight2.4 kg5.3 lb
Net weight5.3 lb2.4 kg
Length188 mm7.4"
Length7.4"188 mm
Height209 mm8.2"
Height8.2"209 mm
Side to center34 mm1.34"
Side to center1.34"34 mm
Air inlet thread sizeOptional
Air inlet thread size0.375 BSP
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Actual air consumption14 l/s30 cfm
Actual air consumption30 cfm


Desoutter Air and Electric Industrial Tools Banner

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance - Minimize Vibration
- Low Weight - Minimize Exhaust Air Jet
- Minimize Torque Reaction - Maximize Power To Weight Ratio
- Thermal Insulation - Minimize Oil From Exhaust
- Minimize Torque Impulse - Appropriate Size
- Minimize Necessary Trigger Loading - Excellent Grip
