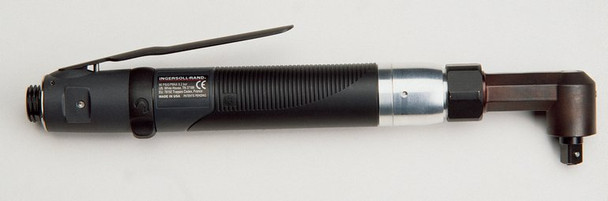

QA1L12C9LD by Ingersoll Rand

Adjustable Cushion Clutch Nutrunner offers torque limiting control in a quiet, award winning ergonomic package.

• Recommended for joints that require a torque limiting clutch.
• Torque range (soft draw): 3.5 to 56.4 in.-lb. / 0.4 to 6.4 Nm
• Speeds: 500 to 1750 RPM
• Ergonomic design reduces operator fatigue.
• Specification tables include examples of our most popular models.

Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

Model	QA1L12C9LD
Free Speed rpm	1270
Drive	1/4" Hex Wire Detent
Weight LBS	2.07
cfm	16
Torque Range (Soft Draw) (Nm)	0.4 - 3.7
Height to Base of Bit (in)	1.34
Length (in)	11.9
Angle Head Side to Center (in)	0.52
Clutch Spring	L,M
Torque Range (Soft Draw) (in.-lb.)	3.5 - 32.2

A Genuine Ingersoll Rand product.
