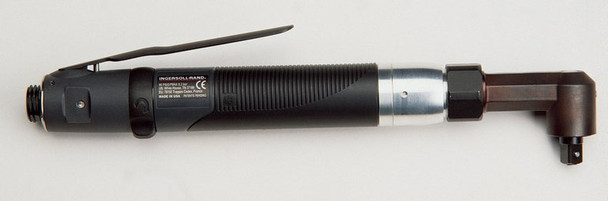

QA1L12S6LD by Ingersoll Rand

Adjustable Precision Shut-off Clutch Nutrunner offers precise torque control in a quiet, award winning ergonomic package.

• Recommended for joints where precise torque control is required.
• Torque range (soft draw): 3.5 to 101.5 in.-lb. / 0.4 to 11.5 Nm
• Speeds: 250 to 1750 RPM
• Ergonomic design reduces operator fatigue.
• Specification tables includes examples of our most popular models.

Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

Model	QA1L12S6LD
Free Speed rpm	1270
Drive	3/8" Square
Weight LBS	2.07
cfm	16
Angle Head Height (in)	1.34
Torque Range (Soft Draw) (Nm)	0.4 - 3.7
Length (in)	11.9
Angle Head Side to Center (in)	0.52
Clutch Spring	L, M
Torque Range (Soft Draw) (in.-lb.)	3.5 - 32.2

A Genuine Ingersoll Rand product.
