Description

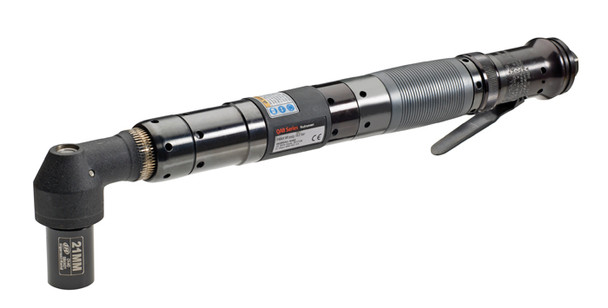

Next Generation of Productivity - The All New QA8 Series Air Nutrunners provide dramatic improvements in speed, size, durability, and ergonomics.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
Last updated on August 3rd 2021 - ATP115
View AllClose
- Torque Range: 20 to 225 Nm / 14.8 to 166 ft.-lbs
- Speeds: 90 to 570 RPM
- Specification tables include examples of our most popular models.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
| Model | QA8AALD225NP56S12 |
| Common Fastener Size | M16 |
| Drive | 3/4" |
| Torque Range (ft-lb (Nm) | 166 (225) |
| Stall Torque, ft-lb (Nm) | 202.1 (274) |
| Free Speed (rpm) | 90 |
| Length in (mm) | 20" (508) |
| Weight lbs (kg) | 8.47 (3.84) |
| Head Height, in (mm) | 2.09" (53.2) |
| Side to Center in (mm) | 1.19" (30) |
