Description
A proven world-class combination - QE2 Series tools and IC Series controllers team up to provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. QE2 Motors are supplied without the front end effector so that customized heads, including screwfeeder attachments, can be easily assembled to the front of the tool. Inline and Pistol configurations are available.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
View AllClose
- Torque Range: 2.7 - 88.5 in.-lb. (0.3 - 10 Nm)
- Speeds: Variable to 3,000 RPM
- True closed-loop transducerized torque and angle control provides excellent accuracy
- Advanced Tightening Strategies
- Data and Process Communications
- TactAlert provides positive feedback to the operator without distraction from the task
- ESD Safe
- RoHS Compliant
- Lightweight, compact, high-speed, easily accessible controls
- Bright LEDs provide visible status indication
- Comfortable, Ergonomic grip
- Preventative Maintenance alerts
- Super durable
- Flexible and Lightweight
- 3, 6 and 10 meter inline cables
- Inline and 90 degree cable options
- Socket Selector Tray
- Bit Selector Tray
- Torque Arms
- Ergo Arm
- Spring Balancers
- Shaker Boxes
- Bits & Sockets
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

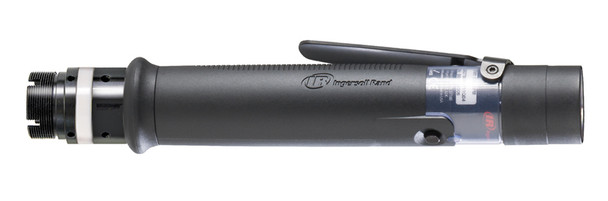

Model | QE2SL010PM0 |
CPN | 46775029 |
Actuation | Inline - Lever Start |
Torque Range in-lbs (Nm) | 17.7 - 88.5 (2.0 - 10.0) |
Speed (rpm) | 850 |
Weight lbs (kg) | 1.52 (0.67) |
Drive | NA |
Length in (mm) | 9.81 (250) |
Side to Center in (mm) | 0.86 (22) |
A Genuine Ingersoll Rand product.
