Description
The QM Series Fixtured spindles were developed to meet the high production and duty cycles required in many of today's manufacturing facilities. Designed to work either alone or in multiple, these spindles when teamed with an IC Controller, will deliver the quality and performance your fastening application may require. The QM9 Series has a torque range up to 2500 Nm and speeds up to 278 RPM. With their 89 mm center to center distance, optional spindle lengths and multiple mounting options, they will fit most any application.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
View AllClose
- High Durability
- Flexible Mounting Options
- External Electronic Pod
- High Duty Cycle
- Multiple Spindle Lengths
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

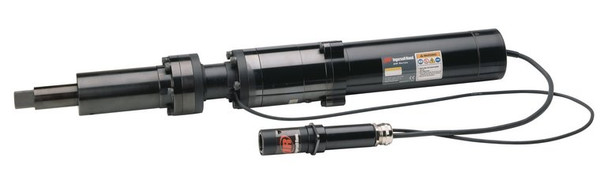

Model | QM9SS435H22S16 |
CPN | 18453670 |
Bolt Size | M12 - M18 |
Torque Range Nm | 109 - 346 |
Max Torque Nm | 435 |
Free Speed rpm | 203 |
Weight kg | 19.6 |
Spindle Length mm | 300 |
Float mm | 50 |
Square Drive in | 1 |
Overall Length mm | 860 |
C-C mm | 89 |
A Genuine Ingersoll Rand product.
