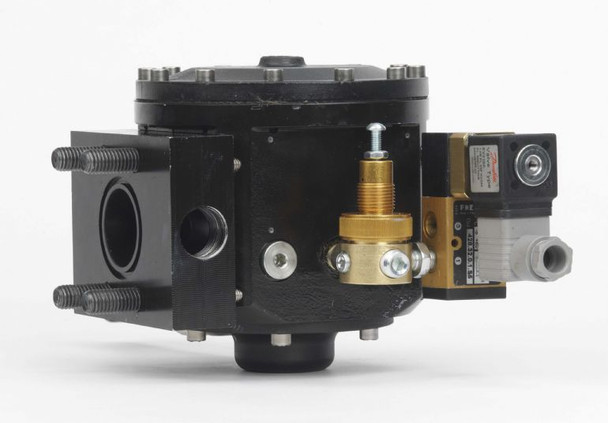

RR250-F30 (16675845) by Ingersoll Rand

Ingersoll Rand regulator relay valves combine the features of a pressure regulator and a solenoid controlled relay valve in one compact device. This combined unit can be mounted directly to the starter, simplifying your piping system.

• Combines the functionality of a pressure regulator and a relay valve
• Includes solenoid valve with manual override feature
• Mounts directly to starter
• Available in 1-1/4", 1-1/2", and 2-1/2" port sizes
• Max. inlet pressure: 30 bar (435 psi)
• Max. outlet pressure: 10 bar (145 psi)
• Voltage: 24 volts DC
• Power: 9.5 watts

Call Zampini Industrial Group Group at 1-800-353-4676 for more info.

Model	RR250-F30 (16675845)
Inlet/Outlet (inches)	2-1/2"
Max Inlet Pressure (PSI)	435
Max Flow	3400 scfm

A Genuine Ingersoll Rand product.
