Description

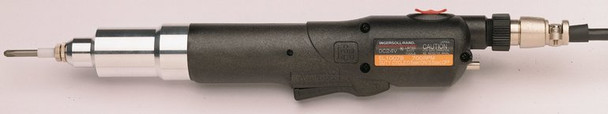

| Model | EL1007BC-ESD |
| Voltage | DC 24 (EC24N-ESD) |
| Type | Inline - Lever Without Soft Stop |
| Torque Range (in-lbs) | 1.7 - 10.4 |
| Torque Range (Nm) | 0.19 - 1.2 |
| Speed (rpm) | 500 - 700 |
| Weight (lb) | 0.9 |
| Weight kg | 0.40 |
| Length (in) | 10.5 |
| Length (mm) | 267 |
| Drive | 1/4" Hex Quick Change |
VersaTec ESD models are designed for the assembly of precision electronic components that are sensitive to electronic shock.
- Torque Range: 1.7 to 10.4 in.-lb. / 2.0 to 12 kgf.cm
- Speeds: 500 to 700 RPM
- Same ESD Control Features at the Soft Stop ESD models.
- Award winning ergonomic design shared by all VersaTec tools
- Class 100 Clean Room rating
For more information on the Ingersoll Rand EL1007BC-ESD please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4654638
