Description
Model | 1RANC1 |
Torque Range (soft joint) (Nm) | 0.15 - 3.40 |
Length (mm) | 217 |
Side to Center Distance (mm) | 17 |
Torque Range (soft joint) (in.-lb.) | 1.5 - 30.0 |
Air Inlet | 1/8" NPT |
Side to Center Distance (in) | 0.67 |
Actuation | Trigger Start |
Spindle Type | 1/4" QC |
Weight kg | 0.68 |
Weight (lb.) | 1.5 |
Free Speed (rpm) | 1000 |
Length (in) | 8.56 |

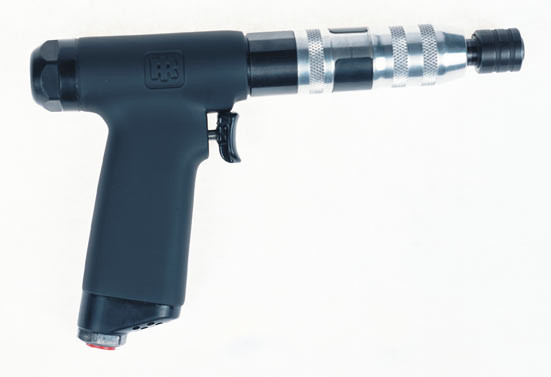

Quality and Performance at an Affordable Price.1 Series Adjustable Cushion clutch screwdrivers combine proven quality and performance with economy for a variety of light assembly applications.
- Lightweight with coated grips for easy handling.
- Speeds: 1000 to 1650 RPM
- Torque Range: 1.5 to 30 in.-lbs / 0.15 to 3.4 Nm
- Specification tables include examples of our most popular models.
For more information on the Ingersoll Rand 1RANC1 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4724514
