Description
| Part number | 1462984 | |

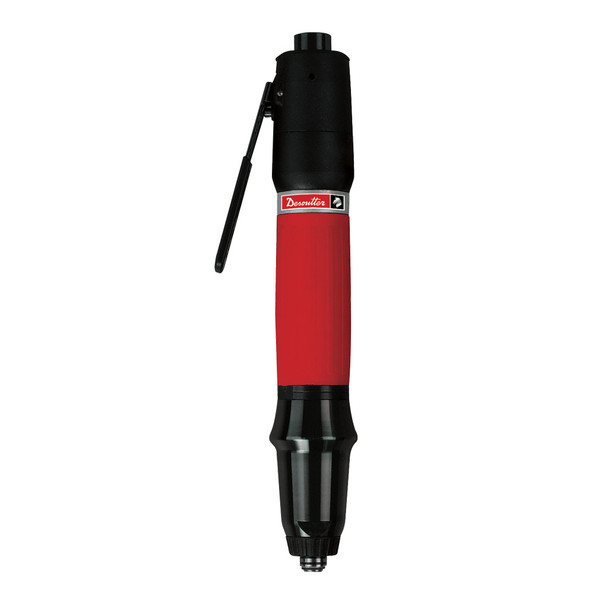

| Model | SD100-LR820-S4Q | |
| Output drive | Hex. 1/4" F" | |
| Free speed | 820 rpm | |
| Torque range | 8.9-88.5 in.lbs | 3.5-10.0 |
| Fitted spring | 31.0-88.5 in.lbs | 3.5-10.0 |
| Operation | Lever start | |
| Net weight | 2.02 lb | 0.92 kg |
| Length | 10.9" | 278 mm |
| Air inlet thread size | 1/4 " | |
| Air inlet thread size | 0.25 BSP | |
| Min. hose size | 3/8" | 10 mm |
| Actual air consumption | 18.4 cfm | |
| Noise level | 73 db(A) | |
| Vibration (ISO-8662-7) | <2.5 m/s² | |
Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:
| - Good Balance | - Minimize Vibration |
| - Low Weight | - Minimize Exhaust Air Jet |
| - Minimize Torque Reaction | - Maximize Power To Weight Ratio |
| - Thermal Insulation | - Minimize Oil From Exhaust |
| - Minimize Torque Impulse | - Appropriate Size |
| - Minimize Necessary Trigger Loading | - Excellent Grip |
Last updated on August 3rd 2021 - ATP115
