Description
| Model | 41PD10TSQ4 |
| Torque (Soft Draw) 90 psi Nm | 10.2 |
| Free Speed rpm | 1000 |
| cfm | 20 |
| Torque (Soft Draw) 50 psi in.-lb. | 50 |
| Torque (Soft Draw) 50 psi Nm | 5.7 |
| Side to Center Distance in. | .80 |
| Weight lb | 2.30 |
| Length in. | 7.40 |
| Torque (Soft Draw) 90 psi in.-lb. | 90 |
| Torque (soft draw) (Nm) | |
| Screw Size Range | |
| Weight, (kg) | |
| Length (mm) | |
| Side to Center (mm) | |
| Bit Holder Capacity (in) | |
| Air Consumption (L/min) |
Torque Output: 45 to 120 in.-lbs ( 4.0 to 13.6 Nm ) Direct Drive
- Recommended for soft pull applications not requiring critical torque control.

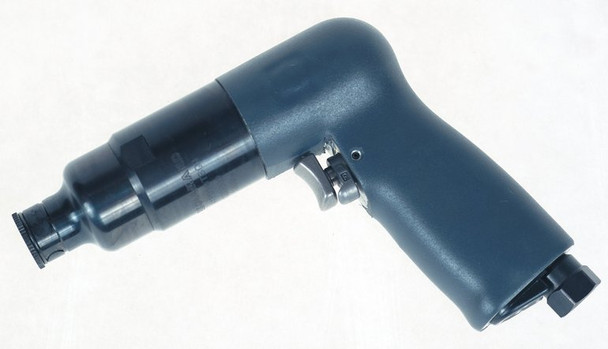

For more information on the Ingersoll Rand 41PD10TSQ4 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
CCN Number 4246989
