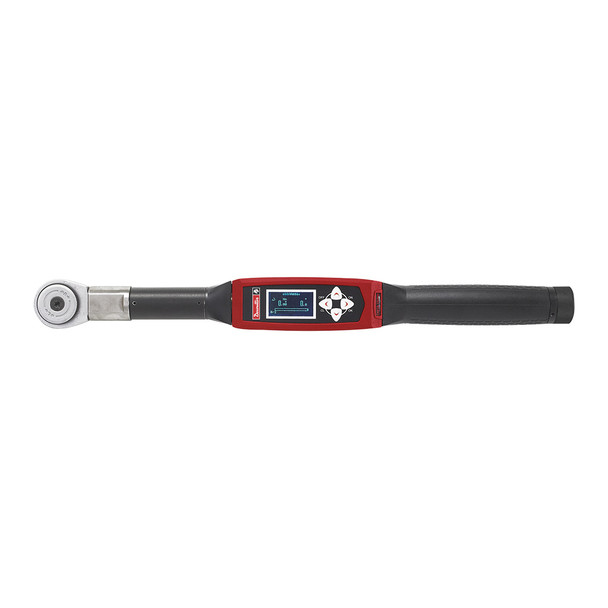

DWTA 400 - Digital wrench for torque & angle

Part number	6151657620
Model	DWTA 400
Type of tool	Digital
Torque range	40-400 Nm	29.5-295
Torque range	29.5-295 ft.lbs	40-400
Output drive	3/4"
Net weight	2.8 kg	6.2 lb
Net weight	6.2 lb	2.8 kg
Length	1026 mm	40.4"
Length	40.4"	1026 mm
Accuracy	+/-1% +/- 1 digit
Drive	14x18 mm	0,55x0,71
Drive	0,55x0,71"	14x18

Benefits

Residual torque check at predefined angle rotation

Joint analysis with Yield point detection

Features

Digital Torque wrench & angle non length dependent

Used for quality control: residual torque check

Used with data acquisition Delta 7D

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
