Description

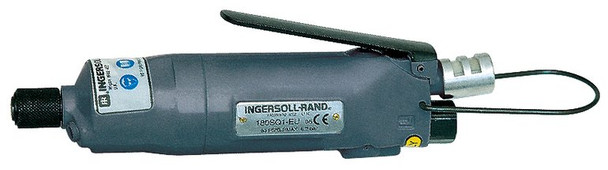

Inline pulse tool with an integral transducer. When connected with a YETC Series Controller this system will provide a "closed loop" torque control system for accurate tightening of bolts and feedback to the operator and plant systems.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
View AllClose
- Twin blade pulse mechanism for compact size, low weight
- Minimal noise, vibration and reaction for operator comfort
- Patented cooling system reduces maintenance, extends life
- Adjustable pulse mechanism provides greater versatility and accuracy
- Integral audible signal helps operator focus attention on the fastening operations
- Outboard solenoid valve reduces tool weight, enhances operator convenience
- Strain gauge is located on tool anvil close to the socket for a more accurate measurement of torque
- Non-contacting pick-up reduces signal noise, improving torque repeatability
- Programming and calibration is fast and easy
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
Model | YEX-120SA |
Common Fastener Size | M5 - M6 |
Drive Size | 1/4" Quick Change |
Torque Range (ft.-lb.) | 2.7 - 5.3 |
Torque Range (Nm) | 3.6 - 7.2 |
Free Speed (rpm) | 10,000 |
Weight (lb) | 2.6 |
Weight, (kg) | 1.18 |
Length (in) | 10.5 |
Length (mm) | 267 |
Side to Center (in) | 1.22 |
Side to Center (mm) | 31.0 |
Air Consumption (cfm) | 8.8 |
Air Consumption (L/min) | 250 |
A Genuine Ingersoll Rand product.
