Description

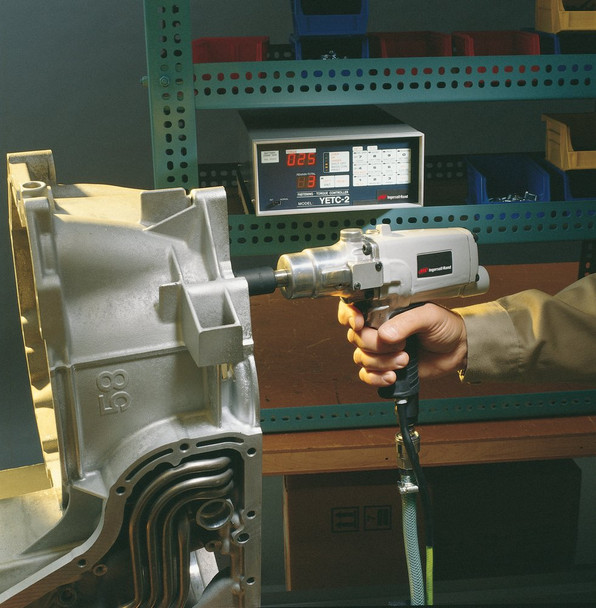

Pistol-grip pulse tool with an integral transducer. When connected with a YETC Series Controller this system will provide a "closed loop" torque control system for accurate tightening of bolts and feedback to the operator and plant systems.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
View AllClose
- Twin blade pulse mechanism for compact size, low weight
- Minimal noise, vibration and reaction for operator comfort
- Patented cooling system reduces maintenance, extends life
- Adjustable pulse mechanism provides greater versatility and accuracy
- Integral audible signal helps operator focus attention on the fastening operations
- Outboard solenoid valve reduces tool weight, enhances operator convenience
- Strain gauge is located on tool anvil close to the socket for a more accurate measurement of torque
- Non-contacting pick-up reduces signal noise, improving torque repeatability
- Programming and calibration is fast and easy
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
| Model | YEX-3000 |
| Common Fastener Size | M16 |
| Drive Size | 3/4" Square |
| Torque Range (ft.-lb.) | 90 - 209 |
| Torque Range (Nm) | 122 - 284 |
| Free Speed (rpm) | 4,000 |
| Weight (lb) | 14.1 |
| Weight, (kg) | 6.4 |
| Length (in) | 12.2 |
| Length (mm) | 309 |
| Side to Center (in) | 1.57 |
| Side to Center (mm) | 40.0 |
| Air Consumption (cfm) | 25.8 |
| Air Consumption (L/min) | 730 |
A Genuine Ingersoll Rand product.
