Description

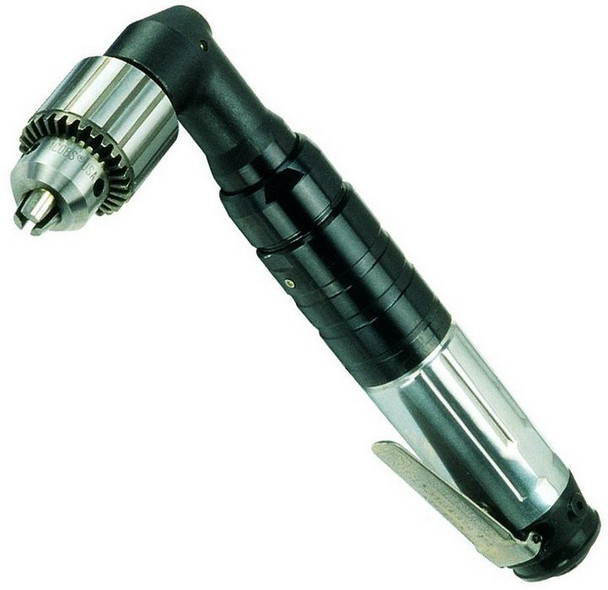

Proven Quality and ReliabilityThe popular 7 Series Angle Drills deliver results day after day. And excellent power-to-weight ratio gets the job done with less fatigue. Available with Aerospace Heads (A1models) or standard chucks.
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
A Genuine Ingersoll Rand product.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
View AllClose
- Modular design allows maximum parts interchangeability and easy, low coast maintenance
- Infinitely variable speed allows slow speed starting and high speed drilling
- Angle head may be rotated 360 degree to allow ideal orientation with the throttle
- Ergonomically designed housing provides a secure surface for operator grip
Call Zampini Industrial Group Group at 1-800-353-4676 for more info.
| Model | 7LH1A1 |
| Height of Head (in) | 1.13 |
| Chuck Capacity in. | 1/4"-28 Female Thread |
| Free Speed rpm | 6000 |
| Height of Head (mm) | 28 |
| Stall Torque Nm | 3.5 |
| Stall Torque in.-lb. | 31 |
| Weight with Chuck kg | 1.02 |
| Side to Center Distance mm | 8 |
| cfm | 26 |
| Side to Center Distance in. | 21/64 |
| Chuck Capacity mm | NA |
| Length with Chuck in. | 10.38 |
| Length with Chuck mm | 263 |
| Weight with Chuck lb. | 2.25 |
A Genuine Ingersoll Rand product.
To view our complete selection of air and electric drills, click here to return to Drills and Tappers - Home.
