Description

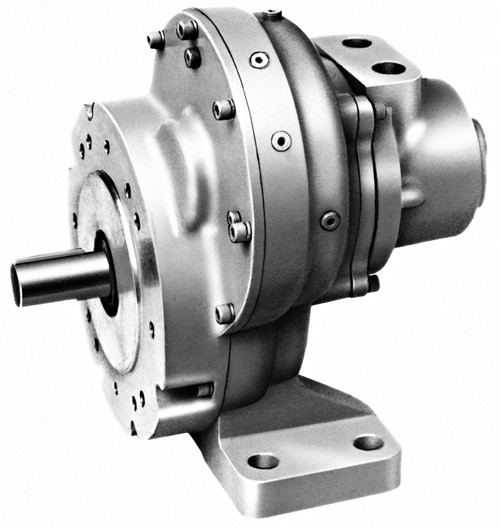

17RA005 Specifications
Model | 17RA005 |
Starting Torque lb.-ft. | 24 |
Weight lb. | 40 |
Speed at Max. Power (rpm) | 562 |
Air Consumption at Max. Power (scfm) | 103 |
Free Speed rpm | 1110 |
Stall Torque Nm | 32.5 |
Air Consumption at Max. Power (m^3/m) | 2.92 |
Weight kg | 18.1 |
Stall Torque lb.-ft. | 37 |
Starting Torque Nm | 50.2 |
Max. Power kw | 1.72 |
Max. Power hp | 2.3 |
- Will not burn out: Ingersoll Rand Multi-Vane Air Motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150 deg F and some motors up to 300 deg F with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Integral face and foot mount standard
- Inlet ports may be rotated for optional mounting configurations
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134717
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
17 Series Air Motors |
Max Power (hp): |
2.3 |
Reversible: |
Yes |
Torque Stall (ft lb): |
37 |
Free Speed (rpm): |
1110 |
Torque Output @ Max. H.P. (ft-lb): |
18.5 |
Speed at Max. Power (rpm): |
555 |
