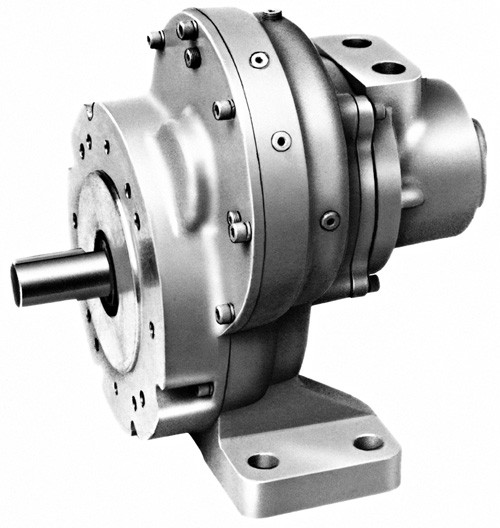

17RA022 Multi-Vane Air Motor - Spur Gear Series by Ingersoll Rand

17RA022 Specifications

Model	17RA022
Starting Torque lb.-ft.	105
Weight lb.	40
Speed at Max. Power (rpm)	129
Air Consumption at Max. Power (scfm)	103
Free Speed rpm	255
Stall Torque Nm	221
Air Consumption at Max. Power (m^3/m)	103
Weight kg	18.1
Stall Torque lb.-ft.	163
Starting Torque Nm	142
Max. Power kw	1.72
Max. Power hp	2.3



• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150 deg F and some motors up to 300 deg F with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Integral face and foot mount standard
• Inlet ports may be rotated for optional mounting configurations

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134766
