Description

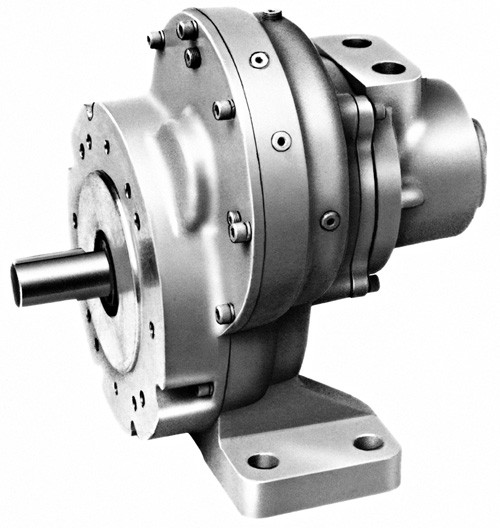

17RB029 Specifications
Model | 17RB029 |
Starting Torque lb.-ft. | 120 |
Weight lb. | 72 |
Speed at Max. Power (rpm) | 97 |
Air Consumption at Max. Power (scfm) | 100 |
Free Speed rpm | 187 |
Stall Torque Nm | 273 |
Air Consumption at Max. Power (m^3/m) | 2.83 |
Weight kg | 32.7 |
Stall Torque lb.-ft. | 201 |
Starting Torque Nm | 163 |
Max. Power kw | 1.64 |
Max. Power hp | 2.2 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150 deg F and some motors up to 300 deg F with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Integral face and foot mount standard
- Inlet ports may be rotated for optional mounting configurations
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134774
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
17 Series Air Motors |
Max Power (hp): |
2.2 |
Reversible: |
Yes |
Torque Stall (ft lb): |
201 |
Free Speed (rpm): |
187 |
Torque Output @ Max. H.P. (ft-lb): |
100.5 |
Speed at Max. Power (rpm): |
93.5 |
