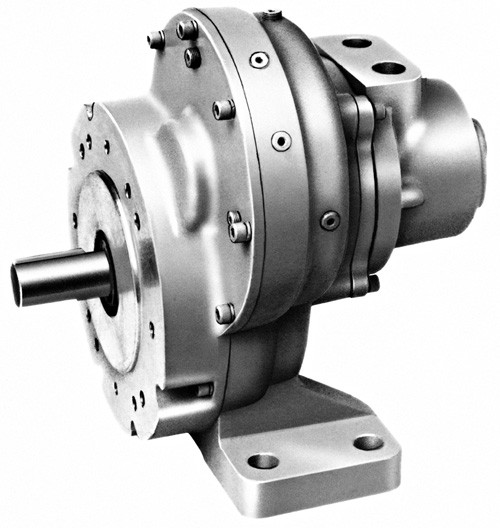

17RB045 Multi-Vane Air Motor - Spur Gear Series by Ingersoll Rand

17RB045 Specifications

Model	17RB045
Starting Torque lb.-ft.	187
Weight lb.	72
Speed at Max. Power (rpm)	62
Air Consumption at Max. Power (scfm)	100
Free Speed rpm	121
Stall Torque Nm	423
Air Consumption at Max. Power (m^3/m)	2.83
Weight kg	32.7
Stall Torque lb.-ft.	312
Starting Torque Nm	254
Max. Power kw	1.64
Max. Power hp	2.2

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150 deg F and some motors up to 300 deg F with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Integral face and foot mount standard
• Inlet ports may be rotated for optional mounting configurations

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134790
