Description
Model | 34RB045 |
Starting Torque lb.-ft. | 348 |
Weight lb. | 75 |
Air Consumption at Max. Power m^3/m | 5.1 |
Air Consumption at Max. Power (scfm) | 180 |
Free Speed rpm | 121 |
Stall Torque Nm | 788 |
Speed at Max. Power rpm | 63 |
Weight kg | 34 |
Stall Torque lb.-ft. | 581 |
Starting Torque Nm | 472 |
Max. Power kw | 2.98 |
Max. Power hp | 4 |

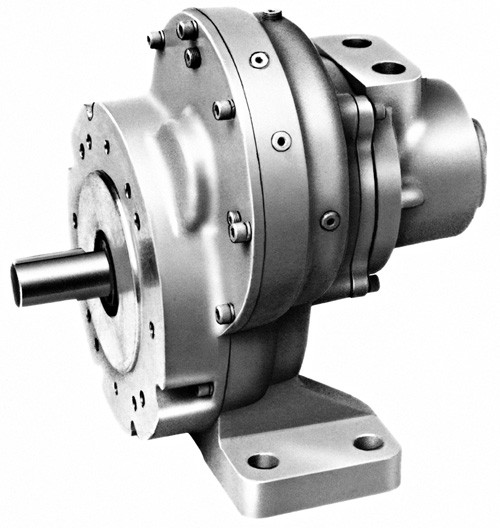

34RA and 34RB series, spur gear, Multi-vane Air Motors. 4.00 hp to 4.10 hp (2.98 to 3.06 Kw). 36 rpm to 1000 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
- Integral face and foot mount standard
- Inlet ports may be rotated for optional mounting configurations
For more information on the Ingersoll Rand 34RB045 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134899
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
34 Series Air Motors |
Max Power (hp): |
4 |
Reversible: |
Yes |
Torque Stall (ft lb): |
581 |
Free Speed (rpm): |
121 |
Torque Output @ Max. H.P. (ft-lb): |
290.5 |
Speed at Max. Power (rpm): |
60.5 |
