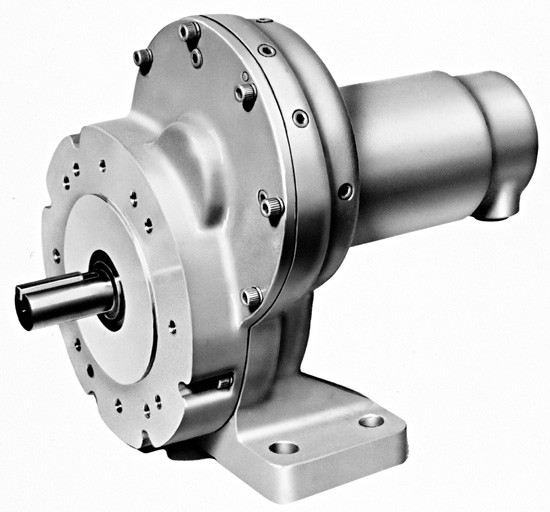

Ingersoll Rand 48RA011 MOTOR -- MULTI-VANE

Model	48RA011
Starting Torque lb.-ft.	57
Weight lb.	44
Speed at Max. Power (rpm)	423
Air Consumption at Max. Power (scfm)	95
Free Speed rpm	772
Stall Torque Nm	105
Air Consumption at Max. Power (m^3/m)	2.69
Weight kg	20
Stall Torque lb.-ft.	77.5
Starting Torque Nm	77.3
Max. Power kw	2.31
Max. Power hp	3.1

48RA and 48RB series, spur gear, Multi-vane Air Motors. 3.00 hp to 3.10 hp (2.24 to 2.31 Kw). 60 rpm to 1300 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
• Integral face and foot mount standard
• Inlet ports may be rotated for optional mounting configurations

For more information on the Ingersoll Rand 48RA011 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134931
