Description
Model | 48RA022 |
Starting Torque lb.-ft. | 113 |
Weight lb. | 44 |
Speed at Max. Power (rpm) | 213 |
Air Consumption at Max. Power (scfm) | 95 |
Free Speed rpm | 390 |
Stall Torque Nm | 209 |
Air Consumption at Max. Power (m^3/m) | 2.69 |
Weight kg | 20 |
Stall Torque lb.-ft. | 154 |
Starting Torque Nm | 153 |
Max. Power kw | 2.31 |
Max. Power hp | 3.1 |

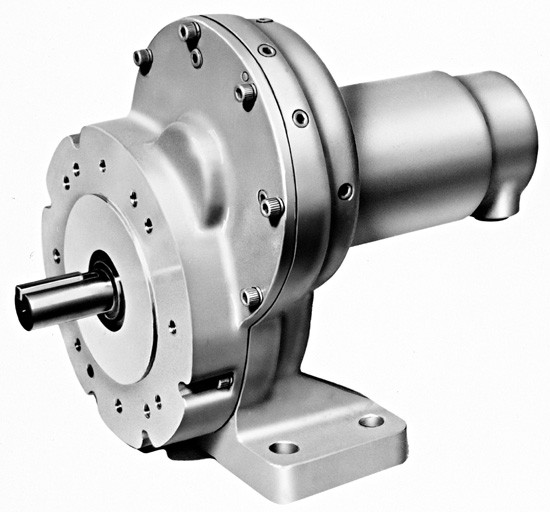

48RA and 48RB series, spur gear, Multi-vane Air Motors. 3.00 hp to 3.10 hp (2.24 to 2.31 Kw). 60 rpm to 1300 rpm with adjustability through air controls. Ideal for low rpm / high torque applications.
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special" non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.
- Integral face and foot mount standard
- Inlet ports may be rotated for optional mounting configurations
For more information on the Ingersoll Rand 48RA022 please call AirToolPro / Zampini Industrial Group at 1-800-353-4676
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1134964
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
48 Series Air Motors |
Max Power (hp): |
3.1 |
Reversible: |
Yes |
Torque Stall (ft lb): |
154 |
Free Speed (rpm): |
390 |
Torque Output @ Max. H.P. (ft-lb): |
77 |
Speed at Max. Power (rpm): |
195 |
