Description

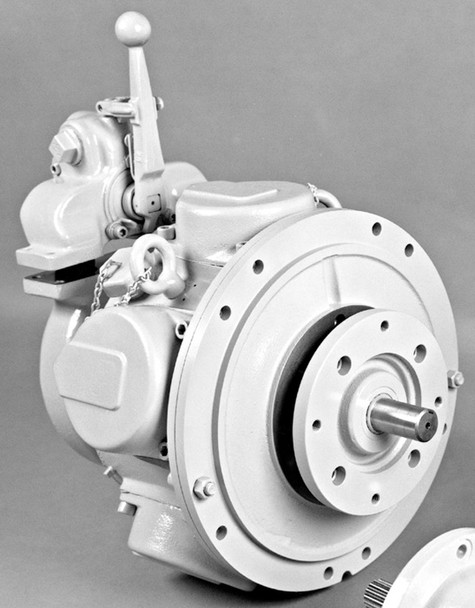

KK5B550 Specifications
Model | KK5B550 |
Starting Torque lb.-ft. | 202 |
Speed at Max. Power (rpm) | 880 |
Air Consumption at Max. Power (scfm) | 850 |
Free Speed rpm | 1750 |
Stall Torque Nm | 441 |
Air Consumption at Max. Power (m^3/m) | 24.1 |
Reversible | Yes |
Stall Torque lb.-ft. | 325 |
Starting Torque Nm | 274 |
Max. Power kw | 22.3 |
Max. Power hp | 30 |
- Up to 30 hp at 90 PSI air supply
- NEMA, SAE and Foot mount models available
- Manual and Remote control options available
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
- Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
Additional Information
Line: |
KK5B Series Air Motors |
Max Power (hp): |
30 |
Reversible: |
Yes |
Torque Stall (ft lb): |
325 |
Free Speed (rpm): |
1750 |
Torque Output @ Max. H.P. (ft-lb): |
162.5 |
Speed at Max. Power (rpm): |
875 |
