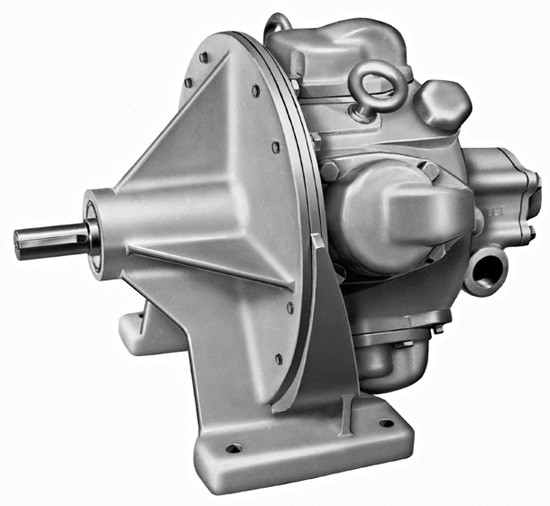

KK6M Radial Piston Air Motor by Ingersoll Rand

KK6M Specifications

Model	KK6M
Starting Torque lb.-ft.	260
Weight lb.	475
Speed at Max. Power (rpm)	755
Air Consumption at Max. Power (scfm)	680
Free Speed rpm	1500
Stall Torque Nm	441
Air Consumption at Max. Power (m^3/m)	19.3
Weight kg	216
Stall Torque lb.-ft.	325
Starting Torque Nm	353
Max. Power kw	18.64
Max. Power hp	25

• Piston motors are ideally suited for applications where there is a lot of resistance and variability such as winch and high capacity hoist.
• Gear reduction models available on the EE series
• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
• Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size.
• Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1031657
