Description

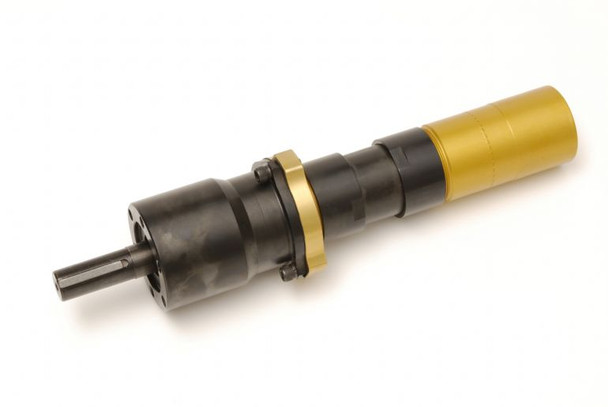

M007RVR027AR4 Specifications
Model | M007RVR027AR4 |
Starting Torque lb.-ft. | 11.6 |
Weight lb. | 3-1/2 |
Speed at Max. Power (rpm) | 335 |
Air Consumption at Max. Power (scfm) | 33 |
Free Speed rpm | 675 |
Stall Torque Nm | 20.1 |
Air Consumption at Max. Power (m^3/m) | 0.93 |
Reversible | Yes |
Weight kg | 1.6 |
Stall Torque lb.-ft. | 15.5 |
Starting Torque Nm | 15.7 |
Max. Power kw | 0.48 |
Max. Power hp | 0.64 |
- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications. Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
- Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
- Compact and Portable: Get maximum horsepower in minimum size. Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
- No shock starts: Air cushioned start-up cuts stress to your equipment.
- Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ??special? non-cataloged motors for unique applications.
- Two hole ??A? flange standard on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios, Optional 4 hole ??B? flange available on these models.
- 3/8?-24 or ?«?-20 threaded shaft options available on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios.
- Six hole ??B? flange standard on 063, 086, 119, 151, 188, 275 and 374 gear ratios.
- Square drive option available
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1240712
Last updated on August 3rd 2021 - ATP115
Additional Information
Line: |
M007 Series Air Motors |
Max Power (hp): |
0.64 |
Reversible: |
Yes |
Torque Stall (ft lb): |
15.5 |
Free Speed (rpm): |
675 |
Torque Output @ Max. H.P. (ft-lb): |
7.75 |
Speed at Max. Power (rpm): |
337.5 |
