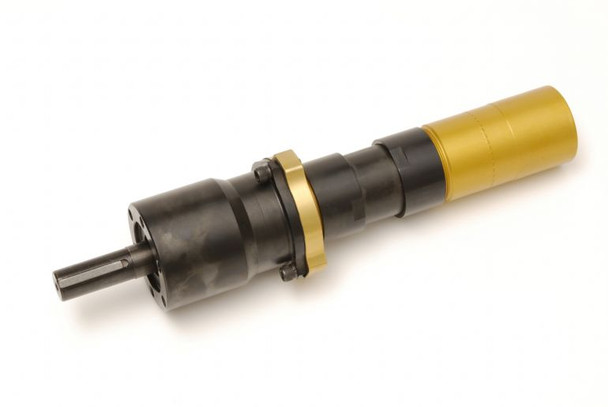

Ingersoll Rand M007RVR044AR4 Multi-Vane Reversible Air Motor | Planetary Gear | 0.64 HP | 420 RPM | 18.6 (lb-ft) Starting Torque | 24.8 (lb-ft) Stall Torque

M007RVR044AR4 Specifications

Model	M007RVR044AR4
Starting Torque lb.-ft.	18.6
Weight lb.	3-1/2
Speed at Max. Power (rpm)	210
Air Consumption at Max. Power (scfm)	33
Free Speed rpm	420
Stall Torque Nm	33.6
Air Consumption at Max. Power (m^3/m)	0.93
Reversible	Yes
Weight kg	1.6
Stall Torque lb.-ft.	24.8
Starting Torque Nm	25.2
Max. Power kw	0.48
Max. Power hp	0.64

• Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
• Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications. Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
• Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
• Compact and Portable: Get maximum horsepower in minimum size. Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
• Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
• No shock starts: Air cushioned start-up cuts stress to your equipment.
• Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide ƒ??specialƒ? non-cataloged motors for unique applications.
• Two hole ƒ??Aƒ? flange standard on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios, Optional 4 hole ƒ??Bƒ? flange available on these models.
• 3/8ƒ?-24 or ?«ƒ?-20 threaded shaft options available on 000, 004, 006, 009, 012, 015, 021, 027, 037, 044 gear ratios.
• Six hole ƒ??Bƒ? flange standard on 063, 086, 119, 151, 188, 275 and 374 gear ratios.
• Square drive option available

To view our complete selection of pneumatic air motors, return to Air Motors - Home.
CCN Number 1240779
