Description
| Part number | 2051479774 | |

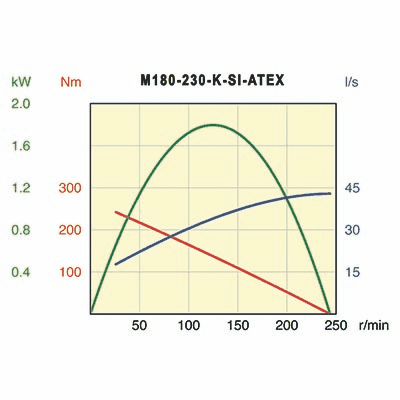

| Model | M180-230-K-SI-ATEX | |
| Max. Output Power | 2.41 hp | |
| TorqueAtMaxPower_ftlbs | 103 ft.lbs | 139 Nm |
| Mini starting torque | 151 ft.lbs | 205 Nm |
| Stall torque | 205 ft.lbs | 278 Nm |
| Free speed | 230 rpm | |
| ATEX | YES | |
| ATEX Directive | II 2GD c T6 IIC T85C | |
| Reversible | NO | |
| Back head coaxial | NO | |
| Front nut threaded | NO | |
| Lubrication free | NO | |
| Stainless steel | NO | |
| Net weight | 11.7 lb | 5.3 kg |
| Air flow at max. capacity | 72 cfm | |
Benefits
Features
For more information on the M180-230-K-SI-ATEX air motor, please call us at 1-800-353-4676 today.
Air motors are an ideal solution for many applications in such varied equipment as material handling, packaging, strapping, or printing machinery, petrochemical and agricultural equipment, food processing machinery, and many more custom and standard machines. Air motors offer many advantages over electric motors, and are often the only feasible option for driving automation.
To view our complete selection of pneumatic air motors, return to Air Motors - Home.
Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:
| - Good Balance | - Minimize Vibration |
| - Low Weight | - Minimize Exhaust Air Jet |
| - Minimize Torque Reaction | - Maximize Power To Weight Ratio |
| - Thermal Insulation | - Minimize Oil From Exhaust |
| - Minimize Torque Impulse | - Appropriate Size |
| - Minimize Necessary Trigger Loading | - Excellent Grip |
