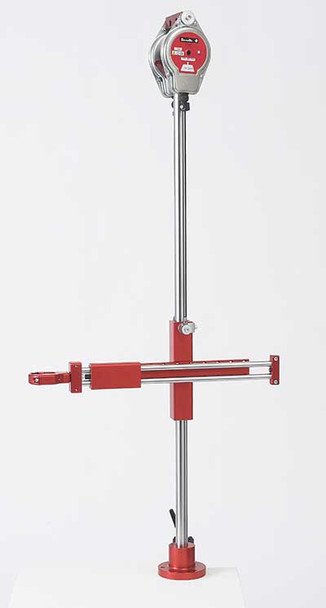

D53-100 by Desoutter - 6158107050

D53-100 -

Benefits

Takes away the tool torque & weight from the operator wrist

Improves quality of work and torque accuracy

Features

Up to 100 Nm

90 degrees tool clamp interface for straight or pistol grip tools

2 balancers 22D included

Tool clamp to order separately

Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6158107050
Model	D53-100
Max torque	100 Nm	73.7 ft.lbs
Max torque	73.7 ft.lbs	100 Nm
Max. tool weight	6 kg	13.2 lb
Max. tool weight	13.2 lb	6 kg
Arm equipped with	2 x 22D
Tool clamp diameter	To order separately	To order separately
Tool clamp diameter	To order separately	To order separately
Dimension A	1147 mm	45.2"
Dimension A	45.2"	1147 mm
Dim. Maxi-B	916 mm	36"
Dim. Maxi-B	36"	916 mm
Dim. Mini-B	255 mm	10"
Dim. Mini-B	10"	255 mm
Dimension C	515 mm	20.3"
Dimension C	20.3"	515 mm
Dimension D	395 mm	15.6"
Dimension D	15.6"	395 mm
Dimension E	266 mm	10.5"
Dimension E	10.5"	266 mm

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
