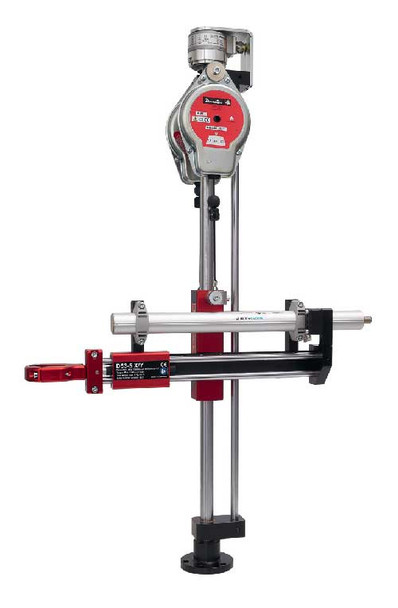

D53-100 X/Y AXLE by Desoutter - 6153978780


Please Call For Pricing and Availability
Please Call For Pricing and Availability


D53-100 X/Y AXLE -


  • Takes away the tool torque & weight from the operator wrist
  • Improves quality of work and torque accuracy
  • Features

  • Up to 100 Nm
  • 2 encoders included: 1 linear, 1 angular
  • 90 degrees tool clamp interface for straight or pistol grip tools
  • 2 balancers 22D included
  • Tool clamp to order separately
  • Benefits:
  • Takes away the tool torque & weight from the operator wrist
  • Improves quality of work and torque accuracy

  • Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

    Part number6153978780
    ModelD53-100 X/Y AXLE
    Max torque100 Nm73.7 ft.lbs
    Max torque73.7 ft.lbs100 Nm
    Max. tool weight6 kg13.2 lb
    Max. tool weight13.2 lb6 kg
    Arm equipped with2 x 22D
    Tool clamp diameterTo order separately To order separately
    Tool clamp diameterTo order separatelyTo order separately
    Dimension A1189 mm46.8"
    Dimension A46.8"1189 mm
    Dimension B398.5 mm15.7"
    Dimension B15.7"398.5 mm
    Dim. Maxi-B486 mm19.1"
    Dim. Maxi-B19.1"486 mm
