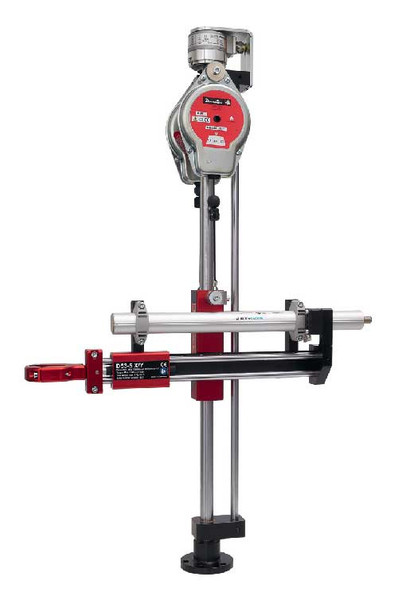

D53-5 X/Y AXLE by Desoutter - 6153978740

D53-5 X/Y AXLE -

Benefits

Takes away the tool torque & weight from the operator wrist

Improves quality of work and torque accuracy

Features

Up to 5 Nm

2 encoders included: 1 linear, 1 angular

90 degrees tool clamp interface for straight or pistol grip tools

Universal clamp included (28,5mm - 41mm)

1 balancer 5DU included

Benefits:

Available Now At AirToolPro.com / Zampini Industrial 1-800-353-4676

Part number	6153978740
Model	D53-5 X/Y AXLE
Max torque	5 Nm	3.7 ft.lbs
Max torque	3.7 ft.lbs	5 Nm
Max. tool weight	0.8 kg	1.8 lb
Max. tool weight	1.8 lb	0.8 kg
Arm equipped with	1 x 5DU
Tool clamp diameter	28,5 - 41	1,12 - 1,62
Tool clamp diameter	1,12 - 1,62	28,5 - 41
Dimension A	789 mm	31.1"
Dimension A	31.1"	789 mm
Dimension B	206.5 mm	8.1"
Dimension B	8.1"	206.5 mm
Dim. Maxi-B	281 mm	11.1"
Dim. Maxi-B	11.1"	281 mm

Desoutter Industrial Tools are some of the finest tools available for production and manufacturing tool applications. AirToolPro.com by Zampini Industrial Group is a premier distributor of Desoutter Air and Electric Tools, and has been a trusted Desoutter Partner since 1987! From precision torque screwdrivers to DC Electric systems to proven high performance air grinders, Desoutter has you covered. Desoutter tools have best in class performance, fit, and finish, and they are designed to achieve the impressive goals below as thoroughly as possible:

- Good Balance	- Minimize Vibration
- Low Weight	- Minimize Exhaust Air Jet
- Minimize Torque Reaction	- Maximize Power To Weight Ratio
- Thermal Insulation	- Minimize Oil From Exhaust
- Minimize Torque Impulse	- Appropriate Size
- Minimize Necessary Trigger Loading	- Excellent Grip
